Controller Mode Quick Start Guide (Using Solution Personality)

This section provides a guide to quickly get started with the PMBus middleware using the Solution personality. Namely: how to set up the PMBus middleware in your project, configure the necessary hardware, and implement the basic PMBus controller functionality.

Note: Testing the Controller mode functionality requires a second PMBus device operating in Target mode. Recommended: use the Target Mode Quick Start Guide (Using Solution Personality) to set up the PMBus Target device.

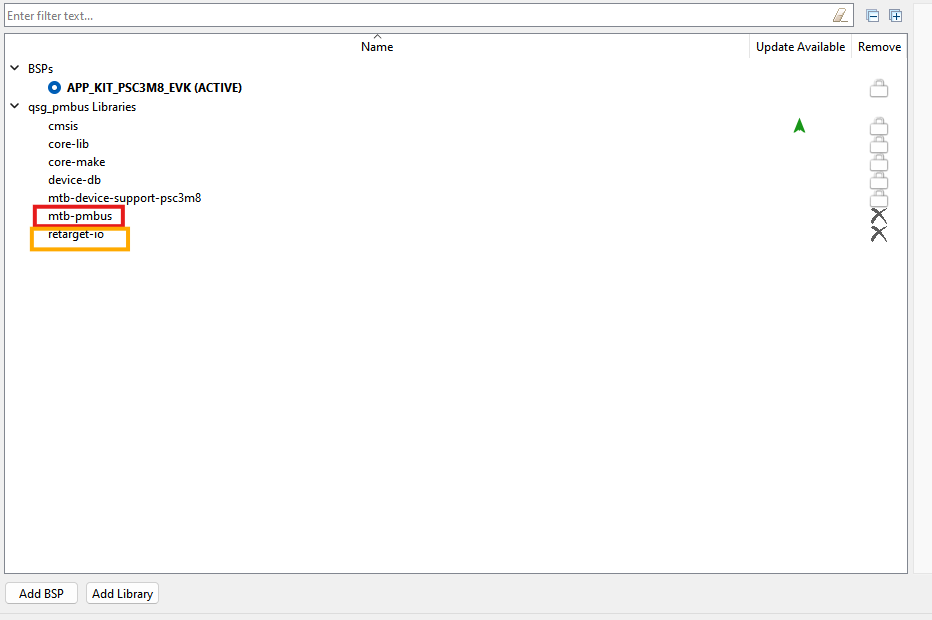

1. Add mtb-pmbus middleware to your project

• If you work in the ModusToolbox IDE, use the ModusToolbox Library Manager to add the mtb-pmbus middleware to your project. Otherwise, ensure that mtb-pmbus middleware is included into your project.

Note: Middleware uses printf() for logging purposes. To use printf() for the terminal output, add retarget-io middleware from the Library Manager or in any other way.

2. Configure SCB blocks, timeout Timer, GPIO pins

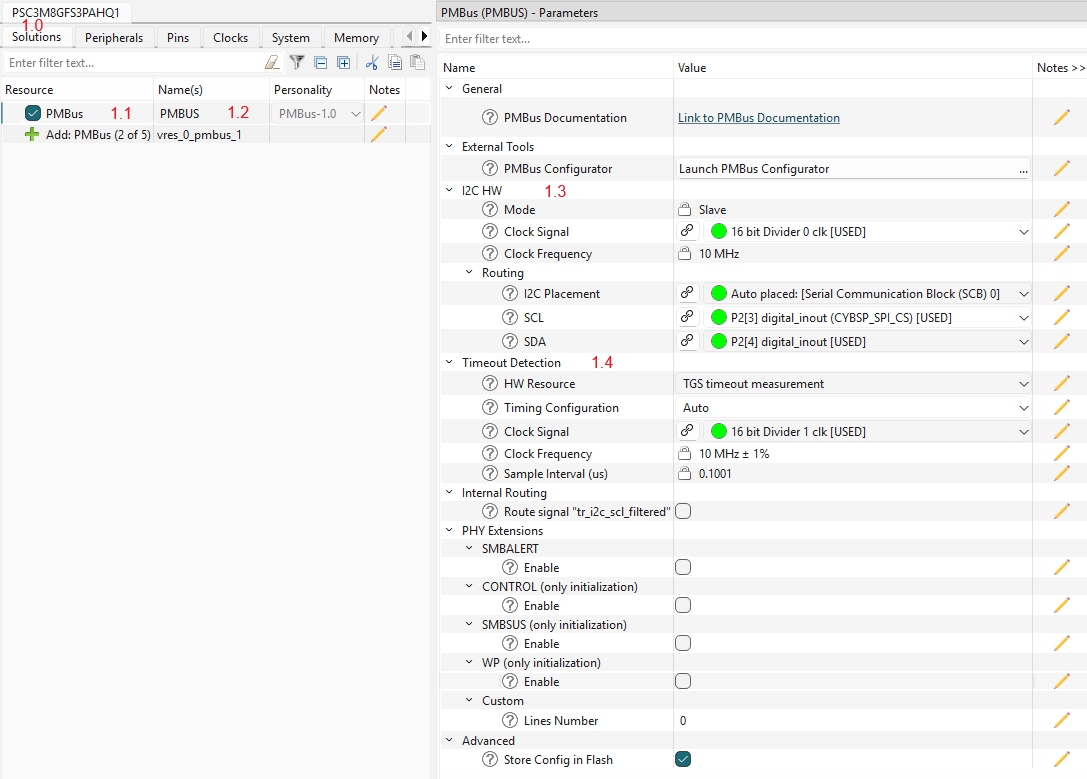

1. Open the Device Configurator and go to the Solutions tab (#1.0).
2. Add a new PMBus instance to your project (#1.1).
3. Select a name for the newly created PMBus instance (e.g., PMBUS, #1.2).
4. "I2C_HW" section (#1.3) - select:
   • the desired SCB block
   • the desired Clock for the selected SCB block
   • the desired pins for SDA and SCL lines, the Device Configurator will automatically configure them into Open Drain mode.
5. "Timeout Detection" section (#1.4) - select the timeout detection option and Clock for this option:
   • TGS (Time Guard Support), uses the SCB block time guard feature to detect the timeout conditions on the I2C bus.
   • TCPWM (Timer Counter Pulse Width Modulator), uses a dedicated timer to detect the timeout conditions on the I2C bus.

Note: The selection of the timeout detection option depends on the device.

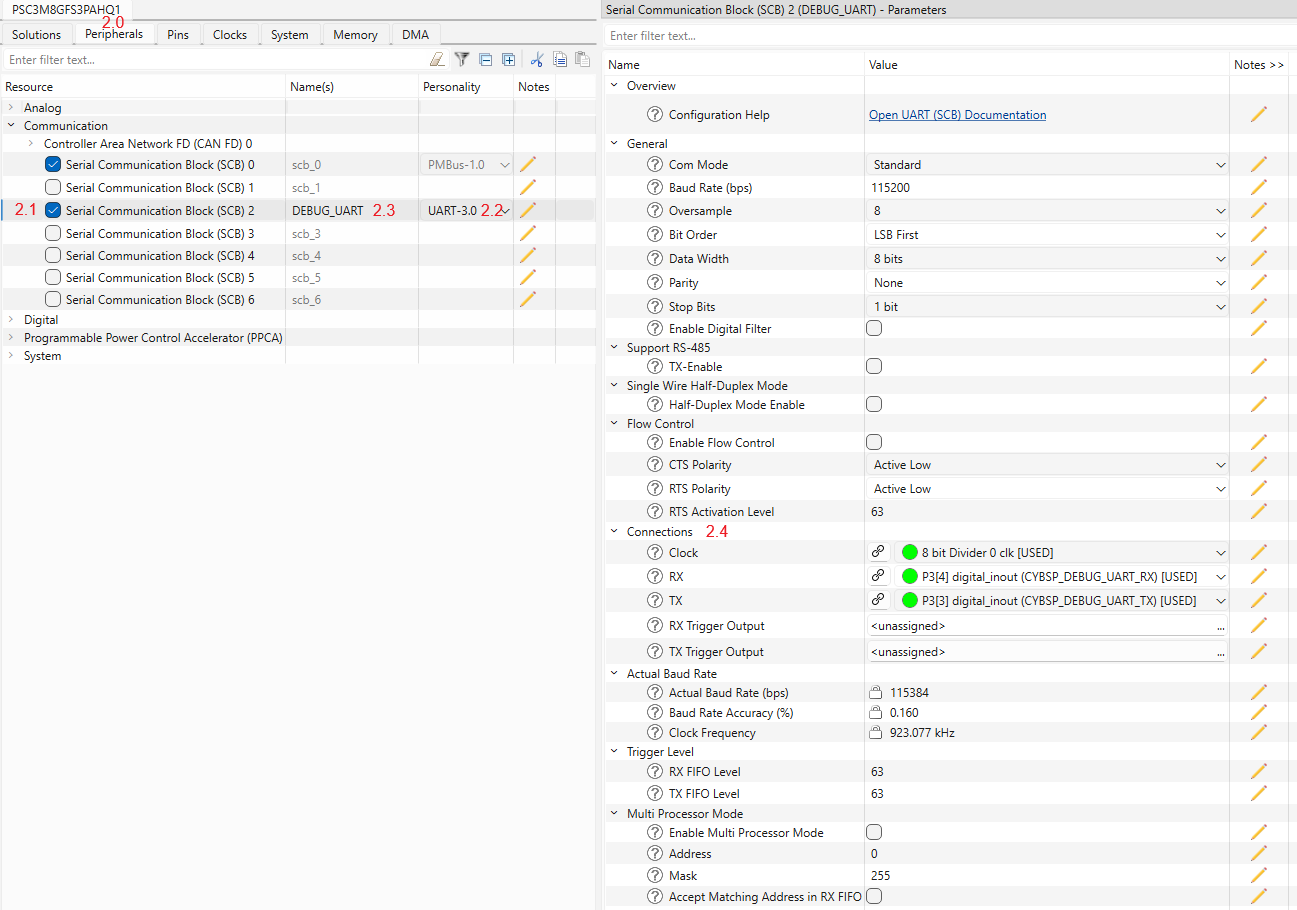

1. On the Peripherals tab (#2.0), enable the SCB block under Communication (#2.1), and select the UART personality (#2.2). Select the desired name for the SCB (#2.3). This block will be used for the debug output.
2. Select the desired pins and clock for the SCB (#2.4). The other UART options can be set by default, see the screenshot.

3. Configure PMBus instance

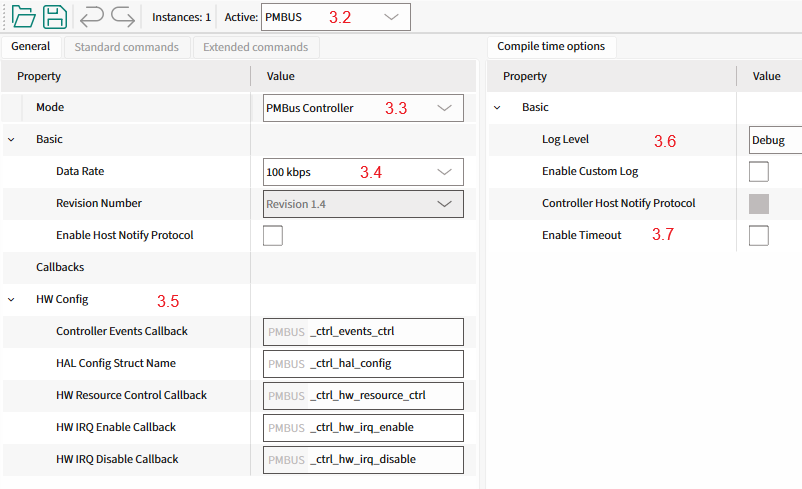

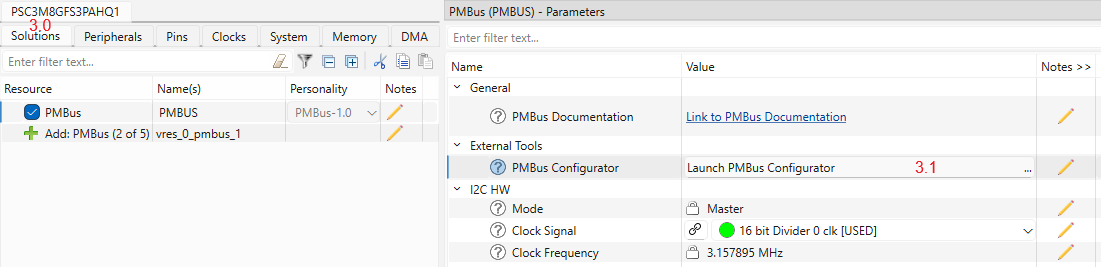

1. On the Solutions tab (#3.0), open the PMBus Configurator (#3.1).

1. Set the operation mode of the PMBus instance (#3.2) to Controller (#3.3).
2. Select the desired data rate (#3.4).
3. Define the names of the Controller callbacks (#3.5) to be used in the code implementation.
4. Set the log level to Debug (#3.6).
5. Disable the PMBus timeout detection to make the example simpler (#3.7).

1. Select File->Save to generate initialization code.

Warning: Important! Save the PMBus configuration using the PMBus Configurator.

4. Add PMBus controller code to your project

This section describes:

• the implementation of a PMBus Controller device using the Solution personality
• how to send Quick Command and Read 32 protocols with the CMD1(0x10) command to the PMBus target device by using dedicated protocol APIs
• how to use generic transfer API to send Write Byte protocol with PAGE(0x00) command and Write/Read Word with the CMD2(0x11) command.

Step 1. Include the necessary header files into the main.c file:

#include "mtb_pmbus.h"
#include "cybsp.h"
#include "cy_retarget_io.h"

Step 2. Set the project defines:

#define PMBUS_TARGET_ADDRESS        (0x18U)

#define PMBUS_PAGE_CMD_CODE         (0x00U)
#define PMBUS_TEST_CMD_1_CODE       (0x10U)
#define PMBUS_TEST_CMD_2_CODE       (0x11U)

#define PMBUS_TEST_PAGE_NUM         (0x01U)
/* 1 second timeout in microseconds */
#define PMBUS_CTRL_TIMEOUT_US       (1000000UL)

Step 3. Create variables for:

Debug the UART HAL object and context:

/* Debug UART variables */
static cy_stc_scb_uart_context_t    DEBUG_UART_context; /* UART context */
static mtb_hal_uart_t               DEBUG_UART_hal_obj; /* UART HAL object */

I2C context:

static cy_stc_scb_i2c_context_t  i2c_pdl_context;

PMBus controller instance:

static mtb_pmbus_ctrl_stc_t qsg_ctrl_inst;

Step 4. Implement the I2C interrupt handler function:

static void PMBUS_i2c_isr(void)
{
    mtb_pmbus_ctrl_isr(&qsg_ctrl_inst);
}

Step 5. Implement the callback functions for:

Controlling I2C hardware resources (init, enable, disable) and enabling/disabling I2C interrupts:

void PMBUS_ctrl_hw_resource_ctrl(mtb_pmbus_ctrl_hw_resources_ctrl_action_t action)
{
    if (action == MTB_PMBUS_CTRL_HW_RESOURCES_INIT)
    {
        /* Initialize I2C */
        Cy_SCB_I2C_Init(PMBUS_I2C_HW, &PMBUS_I2C_config, &i2c_pdl_context);

        /* Configure and initialize I2C interrupt */
        cy_stc_sysint_t i2c_isr_cfg =
        {
            .intrSrc = PMBUS_I2C_IRQ,
            .intrPriority = 3U
        };

        Cy_SysInt_Init(&i2c_isr_cfg, PMBUS_i2c_isr);

        printf("I2C hardware initialized\n\r");
    }
    else if (action == MTB_PMBUS_CTRL_HW_RESOURCES_ENABLE)
    {
        Cy_SCB_I2C_Enable(PMBUS_I2C_HW);
        printf("I2C hardware enabled\n\r");
    }
    else if (action == MTB_PMBUS_CTRL_HW_RESOURCES_DISABLE)
    {
        Cy_SCB_I2C_Disable(PMBUS_I2C_HW, &i2c_pdl_context);
        printf("I2C hardware disabled\n\r");
    }
}

void PMBUS_ctrl_events_ctrl(mtb_pmbus_ctrl_events_t event)
{
    /* Handle Controller events (if required) */
    (void)event;
}

void PMBUS_ctrl_hw_irq_enable(void)
{
    NVIC_EnableIRQ((IRQn_Type) PMBUS_I2C_IRQ);
}

void PMBUS_ctrl_hw_irq_disable(void)
{
    NVIC_DisableIRQ((IRQn_Type) PMBUS_I2C_IRQ);
}

Step 6. Implement the PMBus controller hardware configuration structure:

mtb_pmbus_ctrl_stc_config_hal_t PMBUS_ctrl_hal_config =
{
    .hw_ptr = PMBUS_I2C_HW,
    .pdl_i2c_context = &i2c_pdl_context,
};

Step 7. (From this step, add code to the main() function) Create variables for the result statuses:

cy_rslt_t result;
cy_en_scb_uart_status_t init_status;

Step 8. Initialize the device and board peripherals:

/* Initialize the device and board peripherals */
result = cybsp_init();

/* Board init failed. Stop program execution */
if (result != CY_RSLT_SUCCESS)
{
    CY_ASSERT(0);
}

Step 9. Initialize the UART for the debug output:

/* Start UART operation */
init_status = Cy_SCB_UART_Init(DEBUG_UART_HW, &DEBUG_UART_config, &DEBUG_UART_context);
if (init_status != CY_SCB_UART_SUCCESS)
{
    CY_ASSERT(0);
}

/* Enable UART */
Cy_SCB_UART_Enable(DEBUG_UART_HW);

/* Setup the HAL UART */
result = mtb_hal_uart_setup(&DEBUG_UART_hal_obj, &DEBUG_UART_hal_config,
                            &DEBUG_UART_context, NULL);

/* HAL UART init failed. Stop program execution */
if (result != CY_RSLT_SUCCESS)
{
    CY_ASSERT(0);
}

/* Initialize redirecting of low level IO */
result = cy_retarget_io_init(&DEBUG_UART_hal_obj);

/* retarget IO init failed. Stop program execution */
if (result != CY_RSLT_SUCCESS)
{
    CY_ASSERT(0);
}

/* Transmit header to the terminal */
/* \x1b[2J\x1b[;H - ANSI ESC sequence for clear screen */
printf("\x1b[2J\x1b[;H");

printf("************************************************************\r\n");
printf("PMBus Controller Quick Start Guide CE\r\n");
printf("************************************************************\r\n\n");

Step 10. Enable the global interrupts:

/* Enable global interrupts */
__enable_irq();

Step 11. Initialize and enable the PMBus Controller middleware instance:

mtb_pmbus_ctrl_status_t status;

/* Initialize PMBus controller */
status = mtb_pmbus_ctrl_init(&qsg_ctrl_inst, &PMBUS_ctrl_config);

if (MTB_PMBUS_CTRL_STATUS_SUCCESS != status)
{
    /* Handle the error status */
    printf("PMBus Controller initialization failed! Status: %d\n\r", status);
    CY_ASSERT(0);
}
else
{
    printf("PMBus Controller initialized successfully\n\r");

    /* Enable the controller */
    mtb_pmbus_ctrl_enable(&qsg_ctrl_inst);
    printf("PMBus Controller enabled\n\r");
}

Step 12. Execute the Quick Command protocol example:

printf("\n\r");
printf("====================================\n\r");
printf("Starting PMBus Controller Examples\n\r");
printf("====================================\n\r");

/* Wait a bit before starting transfers */
Cy_SysLib_Delay(1000U);

/* Example 1: Send Quick Command to toggle LED on target device */
printf("\n\r--- Example 1: Quick Command ---\n\r");
printf("Sending Quick Command to address 0x%02X (toggles target LED)\n\r", PMBUS_TARGET_ADDRESS);

status = mtb_pmbus_ctrl_ex_quick_cmd(&qsg_ctrl_inst, PMBUS_TARGET_ADDRESS);

if (status == MTB_PMBUS_CTRL_STATUS_SUCCESS)
{
    /* Wait for transfer completion (1 second timeout) */
    status = mtb_pmbus_ctrl_wait_cmpl(&qsg_ctrl_inst, PMBUS_CTRL_TIMEOUT_US);

    if (status == MTB_PMBUS_CTRL_STATUS_IS_READY)
    {
        printf("Quick Command sent successfully\n\r");
    }
    else if (status == MTB_PMBUS_CTRL_STATUS_TIMEOUT)
    {
        printf("Quick Command timeout\n\r");
    }
    else
    {
        printf("Quick Command failed with status: %d\n\r", status);
    }
}
else
{
    printf("Quick Command API failed with status: %d\n\r", status);
}

/* A short delay before next example */
Cy_SysLib_Delay(500U);

Step 13. Execute the Read 32 protocol example:

/* Example 2: Read 32-bit data using Read 32 protocol */
printf("\n\r--- Example 2: Read 32 Protocol ---\n\r");
printf("Reading 4 bytes from CMD1 (0x%02X) - LED toggle counter\n\r", PMBUS_TEST_CMD_1_CODE);
uint8_t read32_buffer[4U] = {0U};
status = mtb_pmbus_ctrl_ex_read_32(&qsg_ctrl_inst, PMBUS_TARGET_ADDRESS,
                                    PMBUS_TEST_CMD_1_CODE, read32_buffer, false);

if (status == MTB_PMBUS_CTRL_STATUS_SUCCESS)
{
    /* Wait for transfer completion (1 second timeout) */
    status = mtb_pmbus_ctrl_wait_cmpl(&qsg_ctrl_inst, PMBUS_CTRL_TIMEOUT_US);

    if (status == MTB_PMBUS_CTRL_STATUS_IS_READY)
    {
        uint32_t counter_value = read32_buffer[0U] | (read32_buffer[1U] << 8) |
                                 (read32_buffer[2U] << 16) | (read32_buffer[3U] << 24);
        printf("Read 32 completed successfully\n\r");
        printf("Counter value: %" PRIu32 "\n\r", counter_value);
    }
    else if (status == MTB_PMBUS_CTRL_STATUS_TIMEOUT)
    {
        printf("Read 32 timeout\n\r");
    }
    else
    {
        printf("Read 32 failed with status: %d\n\r", status);
    }
}
else
{
    printf("Read 32 API failed with status: %d\n\r", status);
}

/* A short delay before next example */
Cy_SysLib_Delay(500U);

Step 14. Execute the generic transfer example - Send PAGE command:

/* Example 3: Use generic transfer API for PAGE command and Write/Read Word */
printf("\n\r--- Example 3: Generic Transfer API ---\n\r");

/* Step 3a: Send PAGE command using Write Byte protocol */
printf("Setting PAGE to %d using generic transfer\n\r", PMBUS_TEST_PAGE_NUM);

mtb_pmbus_ctrl_stc_transfer_cfg_t transfer_cfg;
uint8_t page_data[2U];
page_data[0U] = PMBUS_PAGE_CMD_CODE;  /* PAGE command */
page_data[1U] = PMBUS_TEST_PAGE_NUM;  /* Page number */

transfer_cfg.addr = PMBUS_TARGET_ADDRESS;
transfer_cfg.data = page_data;
transfer_cfg.wr_size = 2U;  /* Command code + data byte */
transfer_cfg.rd_size = 0U;  /* No read */
transfer_cfg.execute_stop = true;

status = mtb_pmbus_ctrl_execute_transfer(&qsg_ctrl_inst, &transfer_cfg);

if (status == MTB_PMBUS_CTRL_STATUS_SUCCESS)
{
    /* Wait for transfer completion (1 second timeout) */
    status = mtb_pmbus_ctrl_wait_cmpl(&qsg_ctrl_inst, PMBUS_CTRL_TIMEOUT_US);

    if (status == MTB_PMBUS_CTRL_STATUS_IS_READY)
    {
        printf("PAGE command sent successfully\n\r");
    }
    else if (status == MTB_PMBUS_CTRL_STATUS_TIMEOUT)
    {
        printf("PAGE command timeout\n\r");
    }
    else
    {
        printf("PAGE command failed with status: %d\n\r", status);
    }
}
else
{
    printf("PAGE command API failed with status: %d\n\r", status);
}

/* A short delay before next step */
Cy_SysLib_Delay(500U);

Step 15. Execute the generic transfer example - Write Word to CMD2:

/* Step 3b: Write Word to CMD2 on selected page */
printf("\n\rWriting 0xABCD to CMD2 (0x%02X) using generic transfer\n\r", PMBUS_TEST_CMD_2_CODE);

uint8_t write_data[3U];
write_data[0U] = PMBUS_TEST_CMD_2_CODE;  /* CMD2 command */
write_data[1U] = 0xABU;
write_data[2U] = 0xCDU;

transfer_cfg.data = write_data;
transfer_cfg.wr_size = 3U;  /* Command code + 2 data bytes */
transfer_cfg.rd_size = 0U;

status = mtb_pmbus_ctrl_execute_transfer(&qsg_ctrl_inst, &transfer_cfg);

if (status == MTB_PMBUS_CTRL_STATUS_SUCCESS)
{
    /* Wait for transfer completion (1 second timeout) */
    status = mtb_pmbus_ctrl_wait_cmpl(&qsg_ctrl_inst, PMBUS_CTRL_TIMEOUT_US);

    if (status == MTB_PMBUS_CTRL_STATUS_IS_READY)
    {
        printf("Write Word completed successfully\n\r");
    }
    else if (status == MTB_PMBUS_CTRL_STATUS_TIMEOUT)
    {
        printf("Write Word timeout\n\r");
    }
    else
    {
        printf("Write Word failed with status: %d\n\r", status);
    }
}
else
{
    printf("Write Word API failed with status: %d\n\r", status);
}

/* A short delay before next step */
Cy_SysLib_Delay(500U);

Step 16. Execute the generic transfer example - Read Word from CMD2:

/* Step 3c: Read Word from CMD2 on selected page */
printf("\n\rReading from CMD2 (0x%02X) using generic transfer\n\r", PMBUS_TEST_CMD_2_CODE);

uint8_t read_data[3U];
read_data[0U] = PMBUS_TEST_CMD_2_CODE;  /* CMD2 command */

transfer_cfg.data = read_data;
transfer_cfg.wr_size = 1U;  /* Command code only */
transfer_cfg.rd_size = 2U;  /* Read 2 bytes */

status = mtb_pmbus_ctrl_execute_transfer(&qsg_ctrl_inst, &transfer_cfg);

if (status == MTB_PMBUS_CTRL_STATUS_SUCCESS)
{
    /* Wait for transfer completion (1 second timeout) */
    status = mtb_pmbus_ctrl_wait_cmpl(&qsg_ctrl_inst, PMBUS_CTRL_TIMEOUT_US);

    if (status == MTB_PMBUS_CTRL_STATUS_IS_READY)
    {
        printf("Read Word completed successfully\n\r");
        uint16_t word_value = read_data[1U] | (read_data[0U] << 8);
        printf("Word value: 0x%04" PRIX16 "\n\r", word_value);
    }
    else if (status == MTB_PMBUS_CTRL_STATUS_TIMEOUT)
    {
        printf("Read Word timeout\n\r");
    }
    else
    {
        printf("Read Word failed with status: %d\n\r", status);
    }
}
else
{
    printf("Read Word API failed with status: %d\n\r", status);
}

printf("\n\r====================================\n\r");
printf("Examples completed\n\r");
printf("====================================\n\r");

5. Verify Controller Mode Workability

See Verify Controller Mode Workability for verification steps.
