LPComp (Low Power Comparator)

General Description

Provides access to low-power comparators implemented using the fixed-function, LP comparator block.

The functions and other declarations used in this driver are in the cy_lpcomp.h file. You can include the cy_pdl.h to get access to all functions and declarations in the PDL.

Such comparators can perform a fast analog signal comparison of internal and external analog signals in all system power modes. The low-power comparator output can be inspected by the CPU, used as an interrupt/wakeup source to the CPU in Low-power mode (Sleep, Low-power Sleep or Deep-Sleep), used as a wakeup source to system resources in Hibernate mode, or fed to DSI as an asynchronous or synchronous signal (level or pulse).

Configuration Considerations

To set up a low-power comparator, the inputs, output, mode, interrupts and the other configuration parameters are configured. Power the low-power comparator to start it operate.

The sequence recommended for the low-power comparator operation:

1) To initialize the driver, call the Cy_LPComp_Init() function providing the filled cy_stc_lpcomp_config_t structure, the low-power comparator channel number and the low-power comparator registers structure pointer.

2) Optionally, configure the interrupt requests if the interrupt event triggering is needed. Use the Cy_LPComp_SetInterruptMask() function with the parameter for the mask available in the configuration file. Additionally, enable the Global interrupts and initialize the referenced interrupt by setting the priority and the interrupt vector using the Cy_SysInt_Init() function of the sysint driver.

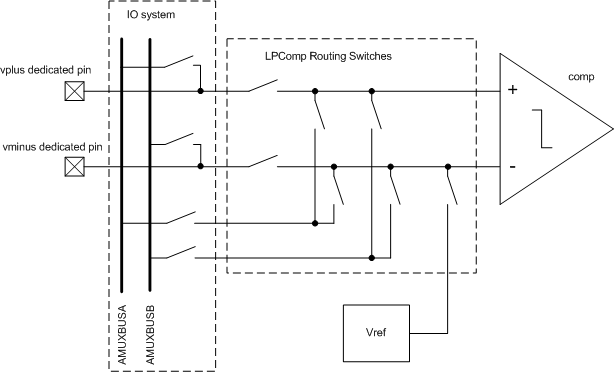

3) Configure the inputs and the output using the Cy_GPIO_Pin_Init() functions of the GPIO driver. High Impedance Analog drive mode is for the inputs and Strong drive mode - for the output. Use the Cy_LPComp_SetInputs() function to connect the comparator inputs to the dedicated IO pins or Vref:

4) Power on the comparator using the Cy_LPComp_Enable() function.

5) The comparator output can be monitored using the Cy_LPComp_GetCompare() function or using the low-power comparator interrupt (if the interrupt is enabled).

Note

The interrupt is not cleared automatically. It is the user's responsibility to do that. The interrupt is cleared by writing "1" in the corresponding interrupt register bit position. The preferred way to clear interrupt sources is using the Cy_LPComp_ClearInterrupt() function.

Individual comparator interrupt outputs are ORed together as a single asynchronous interrupt source before it is sent out and used to wake up the system in the low-power mode. The individual comparator interrupt is masked by the INTR_MASK register. The masked result is captured in the INTR_MASKED register. Writing "1" to the INTR register bit will clear the interrupt.

Low Power Support

The low-power comparator provides callback functions to facilitate the low-power mode transition. Call Cy_LPComp_DeepSleepCallback during execution of Cy_SysPm_CpuEnterDeepSleep. Call Cy_LPComp_HibernateCallback during execution of Cy_SysPm_SystemEnterHibernate. To trigger callback execution, register the callback before calling the mode transition function. Refer to SysPm (System Power Management) driver for more information about low-power mode transition.

The example below shows the entering Hibernate mode. The positive low-power comparator input connects to the dedicated GPIO pin and the negative low-power comparator input connects to the local reference. The LED blinks twice after a device reset and goes into Hibernate mode. When the voltage on the positive input is greater than the local reference voltage (0.45V - 0.75V), the device wakes up and the LED starts blinking.
Section of declarations:

/* Global declarations */
#define MYLPCOMP_HW      LPCOMP
#define MYLPCOMP_CHANNEL CY_LPCOMP_CHANNEL_0
#define LED_RED_PORT     GPIO_PRT0
#define LED_RED_PIN      3U

/* Configure a low-power comparator structure to operate in ULP mode */
const cy_stc_lpcomp_config_t MYLPCOMP_config =
{
    .outputMode = CY_LPCOMP_OUT_DIRECT,
    .hysteresis = CY_LPCOMP_HYST_ENABLE,
    .power = CY_LPCOMP_MODE_ULP,
    .intType = CY_LPCOMP_INTR_DISABLE,
};

/* Set the syspm callback parameters */
static cy_stc_syspm_callback_params_t LPCompHibernateCallbackParams =
{
    MYLPCOMP_HW,
    NULL
};

/* Configure the syspm callback structure */
static cy_stc_syspm_callback_t LPCompHibernateCallback =
{
    &Cy_LPComp_HibernateCallback,
    CY_SYSPM_HIBERNATE,
    0u,
    &LPCompHibernateCallbackParams,
    NULL,
    NULL,
    0
};

/* The comparator context structure */
static cy_stc_lpcomp_context_t lpcomp_context;

Section of application code:

    /* The App code */
    if(Cy_SysPm_IoIsFrozen())
    {
        /* Restore the I/O configuration */
        Cy_SysPm_IoUnfreeze();
    }

    /* Initialize the low-power comparator */
    (void)Cy_LPComp_Init(MYLPCOMP_HW, MYLPCOMP_CHANNEL, &MYLPCOMP_config, &lpcomp_context);

    /* Enable the local reference for low-power comparator inputN */
    Cy_LPComp_UlpReferenceEnable(MYLPCOMP_HW);
    Cy_LPComp_ConnectULPReference(MYLPCOMP_HW, MYLPCOMP_CHANNEL);

    /* Initialize low-power comparator inputs */
    Cy_LPComp_SetInputs(MYLPCOMP_HW, MYLPCOMP_CHANNEL, CY_LPCOMP_SW_GPIO, CY_LPCOMP_SW_LOCAL_VREF);

    /* Enable the low-power comparator */
    Cy_LPComp_Enable(MYLPCOMP_HW, MYLPCOMP_CHANNEL, &lpcomp_context);

    /* Initialize the LED to Strong drive mode */
    Cy_GPIO_SetDrivemode(LED_RED_PORT, LED_RED_PIN, CY_GPIO_DM_STRONG_IN_OFF);

    /* Blink the LED twice */
    for (uint32 i = 1UL; i <= 4UL; i++)
    {
        Cy_GPIO_Inv(LED_RED_PORT, LED_RED_PIN);
        Cy_SysLib_Delay(200/*msec*/);
    }

    /* Set the Hibernate wake-up source to the low-power comparator high output */
    Cy_SysPm_SetHibernateWakeupSource(CY_SYSPM_HIBERNATE_LPCOMP0_HIGH);

    /* Register a new syspm callback */
    (void)Cy_SysPm_RegisterCallback(&LPCompHibernateCallback);

    /* Enter Hibernate mode */
    Cy_SysPm_SystemEnterHibernate();

More Information

For a detailed description of the registers, refer to the appropriate device technical reference manual (TRM).

API Reference
	Macros
	Functions
	Data Structures
	Enumerated Types
