PASCO2SerialIno Class Reference

#include <pas-co2-serial-ino.hpp>

Inheritance diagram for PASCO2SerialIno:

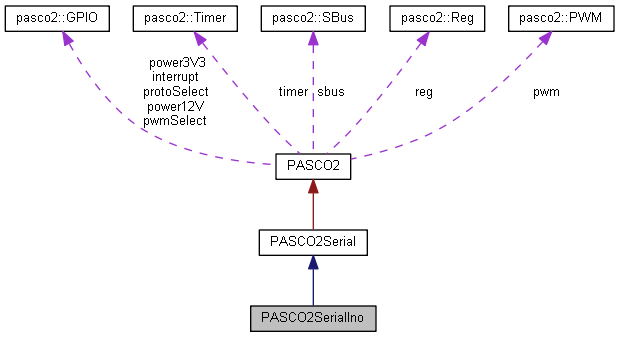

Collaboration diagram for PASCO2SerialIno:

Public Member Functions
	PASCO2SerialIno (TwoWire *wire=nullptr, uint8_t intPin=GPIOIno::unusedPin, uint8_t protoSelectPin=GPIOIno::unusedPin, uint8_t power3V3Pin=GPIOIno::unusedPin, uint8_t power12VPin=GPIOIno::unusedPin)
	PAS CO2 Serial Arduino Constructor. More...
	PASCO2SerialIno (HardwareSerial *serial, uint8_t intPin=GPIOIno::unusedPin, uint8_t protoSelectPin=GPIOIno::unusedPin, uint8_t power3V3Pin=GPIOIno::unusedPin, uint8_t power12VPin=GPIOIno::unusedPin)
	PAS CO2 Serial Arduino Constructor. More...
	~PASCO2SerialIno ()
	PAS CO2 Serial Arduino Destructor. More...
Error_t	begin ()
	Begins the sensor. More...
Error_t	end ()
	Ends the sensor. More...
Public Member Functions inherited from PASCO2Serial
	PASCO2Serial (pasco2::SBus *const sbus, pasco2::Timer *const timer=nullptr, pasco2::GPIO *const interrupt=nullptr, pasco2::GPIO *const protoSelect=nullptr, pasco2::GPIO *const power3V3=nullptr, pasco2::GPIO *const power12V=nullptr)
	PAS CO2 Serial Constructor. More...
virtual	~PASCO2Serial ()
	PAS CO2 Serial Destructor. More...
Error_t	enable ()
	Enables the sensor. More...
Error_t	disable ()
	Disables the sensor. More...
Error_t	startMeasure (int16_t periodInSec=0, int16_t alarmTh=0, void(*cback)(void *)=nullptr)
	Triggers the internal measuring of the sensor. More...
Error_t	stopMeasure ()
	Stops the internal measuring of the sensor. More...
Error_t	getCO2 (int16_t &CO2PPM)
	Gets the CO2 concentration measured. More...
Error_t	getDiagnosis (Diag_t &diagnosis)
	Gets diagnosis information. More...
Error_t	calibrate (ABOC_t aboc, int16_t abocRef, uint16_t pressRef)
	Calibrates the sensor. More...
Error_t	reset ()
	Resets the sensor. More...
Error_t	getDeviceID (uint8_t &prodID, uint8_t &revID)
	Gets device product identifier. More...

Constructor & Destructor Documentation

PASCO2SerialIno() [1/2]

PASCO2SerialIno::PASCO2SerialIno	(	TwoWire *	wire = nullptr,
		uint8_t	intPin = GPIOIno::unusedPin,
		uint8_t	protoSelectPin = GPIOIno::unusedPin,
		uint8_t	power3V3Pin = GPIOIno::unusedPin,
		uint8_t	power12VPin = GPIOIno::unusedPin
	)

PAS CO2 Serial Arduino Constructor.

Mandatory arguments:

• The TwoWire instance needs to be provided

Optional arguments:

• All other pins instances.

Most of the GPIO will be fixed by hardware. In particular those enabling the sensor main power and the emitter power. They are part of the sensor library to provide potential absolute control by software. The hardware interface and its features, are also provided in the library. But it can be as well handled externally

Parameters

[in]	*wire	TwoWire interface instance
[in]	intPin	Interrupt pin. Default is UnusedPin
[in]	protoSelectPin	Protocol select pin. Default is UnusedPin
[in]	power3V3Pin	Power 3V3 pin. Default is UnusedPin
[in]	power12VPin	Power 12V pin. Default is UnusedPin

Precondition

None

PASCO2SerialIno() [2/2]

PASCO2SerialIno::PASCO2SerialIno	(	HardwareSerial *	serial,
		uint8_t	intPin = GPIOIno::unusedPin,
		uint8_t	protoSelectPin = GPIOIno::unusedPin,
		uint8_t	power3V3Pin = GPIOIno::unusedPin,
		uint8_t	power12VPin = GPIOIno::unusedPin
	)

PAS CO2 Serial Arduino Constructor.

Mandatory arguments:

• The HardwareSerial instance needs to be provided

Optional arguments:

• All other pins instances.

Most of the GPIO will be fixed by hardware. In particular those enabling the sensor main power and the emitter power. They are part of the sensor library to provide potential absolute control by software. The hardware interface and its features, are also provided in the library. But it can be as well handled externally

Parameters

[in]	*serial	Serial interface instance
[in]	intPin	Interrupt pin. Default is UnusedPin
[in]	protoSelectPin	Protocol select pin. Default is UnusedPin
[in]	power3V3Pin	Power 3V3 pin. Default is UnusedPin
[in]	power12VPin	Power 12V pin. Default is UnusedPin

Precondition

None

~PASCO2SerialIno()

PASCO2SerialIno::~PASCO2SerialIno

(

)

PAS CO2 Serial Arduino Destructor.

It disables the sensor and deletes all the dynamically created PAL instances in the constructor

Precondition

None

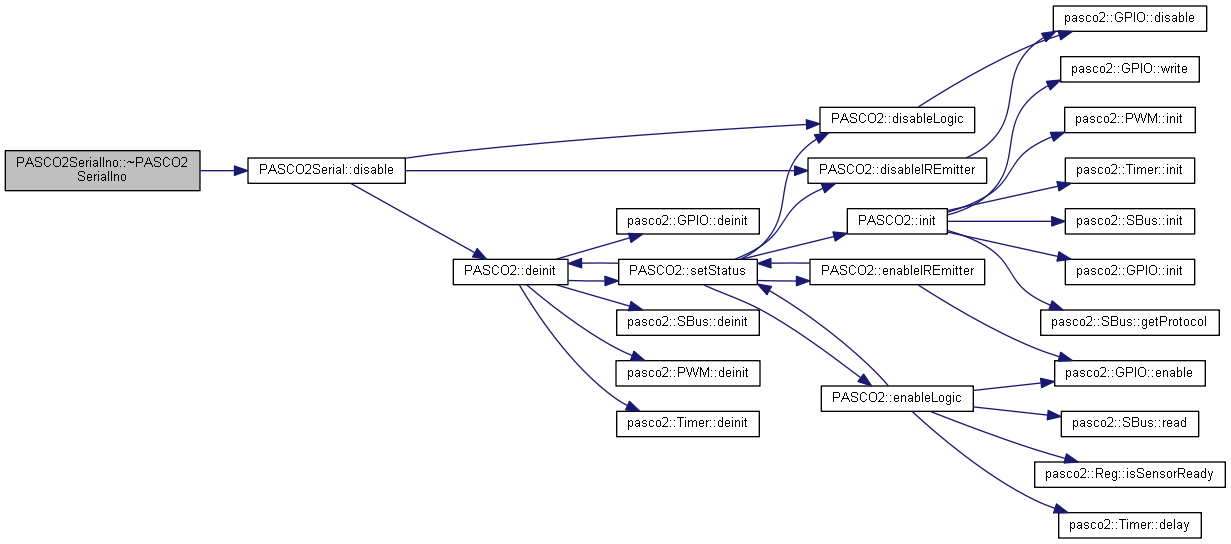

Here is the call graph for this function:

Member Function Documentation

begin()

Error_t PASCO2SerialIno::begin ( )

inline

Begins the sensor.

Note

Optional call. The sensor initializes and enables the sensor directly in the rest of API calls.

Returns

PAS CO2 error code

Return values

OK	if success
INTF_ERROR	if interface error
IC_POWERON_ERROR	if power-on error

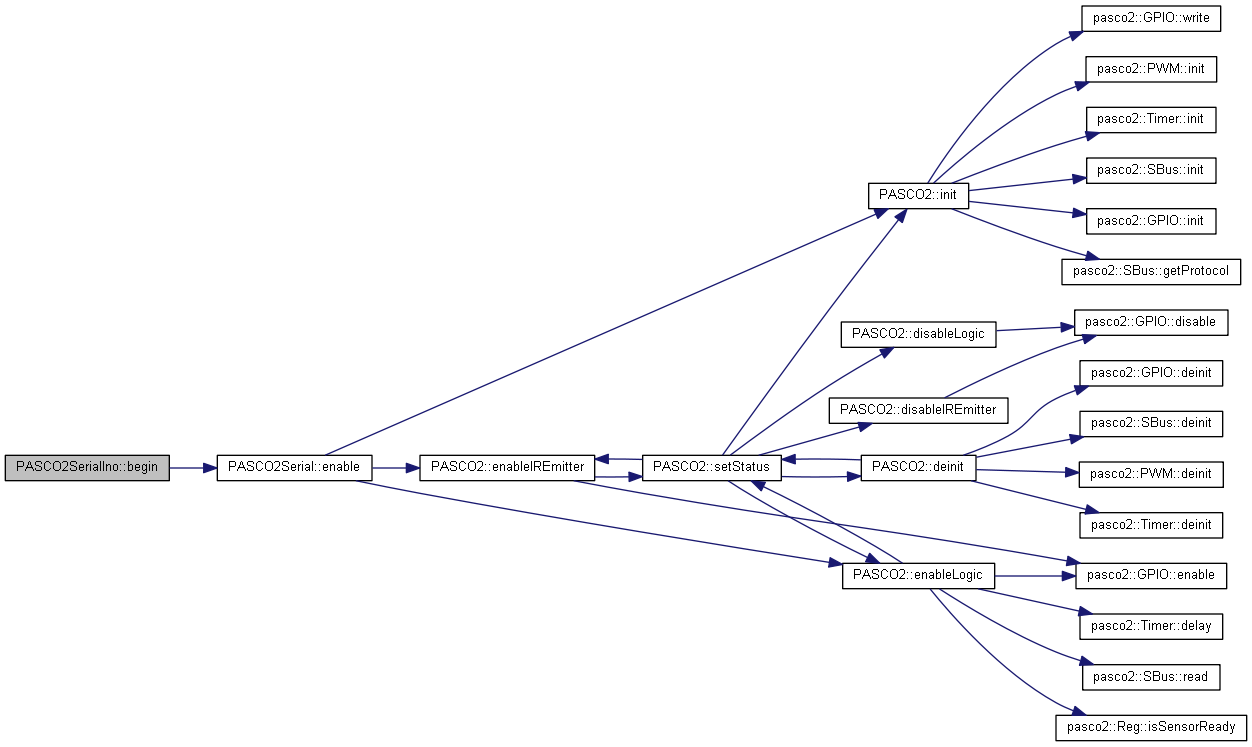

Here is the call graph for this function:

end()

Error_t PASCO2SerialIno::end ( )

inline

Ends the sensor.

Note

Optional call. The sensor initializes and enables the sensor directly in the rest of API calls.

Returns

PAS CO2 error code

Return values

OK	if success
INTF_ERROR	if interface error

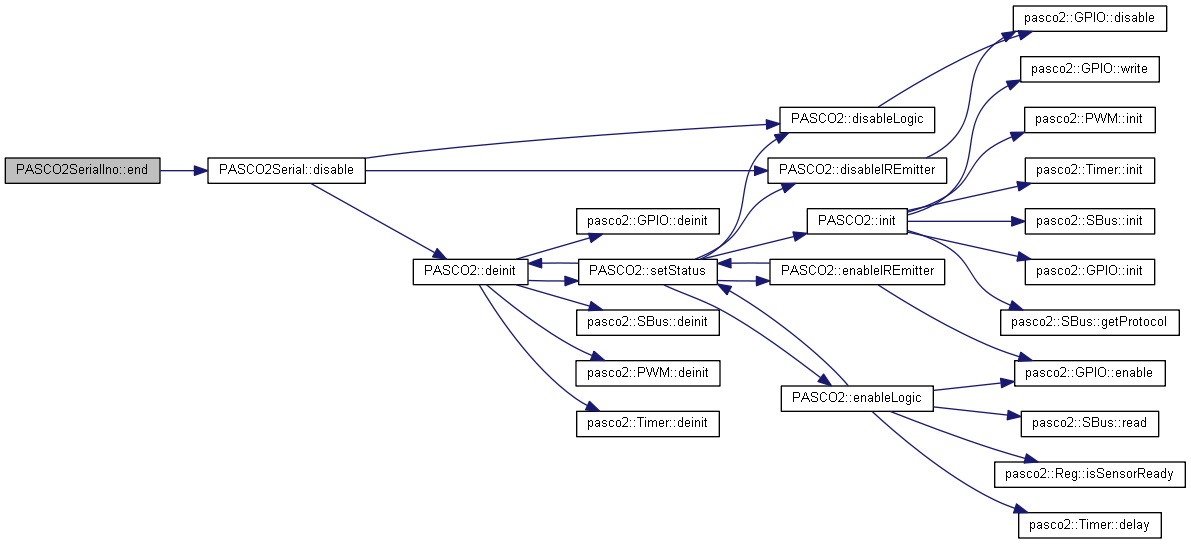

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• pas-co2-serial-ino.hpp
• pas-co2-serial-ino.cpp
