#include <pas-co2-serial.hpp>

Inheritance diagram for PASCO2Serial:

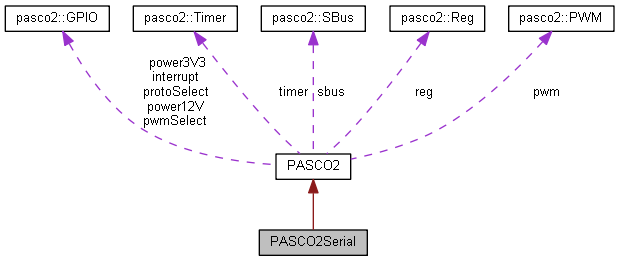

Collaboration diagram for PASCO2Serial:

[legend]

Public Member Functions
	PASCO2Serial (pasco2::SBus const sbus, pasco2::Timer const timer=nullptr, pasco2::GPIO const interrupt=nullptr, pasco2::GPIO const protoSelect=nullptr, pasco2::GPIO const power3V3=nullptr, pasco2::GPIO const power12V=nullptr)
	PAS CO2 Serial Constructor. More...

virtual	~PASCO2Serial ()
	PAS CO2 Serial Destructor. More...

Error_t	enable ()
	Enables the sensor. More...

Error_t	disable ()
	Disables the sensor. More...

Error_t	startMeasure (int16_t periodInSec=0, int16_t alarmTh=0, void(cback)(void )=nullptr)
	Triggers the internal measuring of the sensor. More...

Error_t	stopMeasure ()
	Stops the internal measuring of the sensor. More...

Error_t	getCO2 (int16_t &CO2PPM)
	Gets the CO2 concentration measured. More...

Error_t	getDiagnosis (Diag_t &diagnosis)
	Gets diagnosis information. More...

Error_t	calibrate (ABOC_t aboc, int16_t abocRef, uint16_t pressRef)
	Calibrates the sensor. More...

Error_t	reset ()
	Resets the sensor. More...

Error_t	getDeviceID (uint8_t &prodID, uint8_t &revID)
	Gets device product identifier. More...

Constructor & Destructor Documentation

◆ PASCO2Serial()

PASCO2Serial::PASCO2Serial	(	pasco2::SBus *const	sbus,
		pasco2::Timer *const	timer = `nullptr`,
		pasco2::GPIO *const	interrupt = `nullptr`,
		pasco2::GPIO *const	protoSelect = `nullptr`,
		pasco2::GPIO *const	power3V3 = `nullptr`,
		pasco2::GPIO *const	power12V = `nullptr`
	)

PAS CO2 Serial Constructor.

Mandatory arguments:

The SBus needs to be provided
A timer instance (currently default as nullptr.TODO: Needs to be changed!)

Optional arguments:

All GPIO instances.

Most of the GPIO will be fixed by hardware. In particular those enabling the sensor main power and the emitter power. They are part of the sensor library to provide potential absolute control by software. The hardware interface and its features, are also provided in the library. But it can be as well handled externally

Parameters

[in]	*sbus	Serial bus instance
[in]	*timer	Timer instance
[in]	*interrupt	Interrupt GPIO instance. Default is nullptr
[in]	*protoSelect	Protocol select GPIO instance. Default is nullptr
[in]	*power3V3	Power 3V3 control GPIO instance. Default is nullptr
[in]	*power12V	Power 12V control GPIO instance. Default is nullptr

Precondition: None

◆ ~PASCO2Serial()

PASCO2Serial::~PASCO2Serial ( )

virtual

PAS CO2 Serial Destructor.

Precondition: None

Member Function Documentation

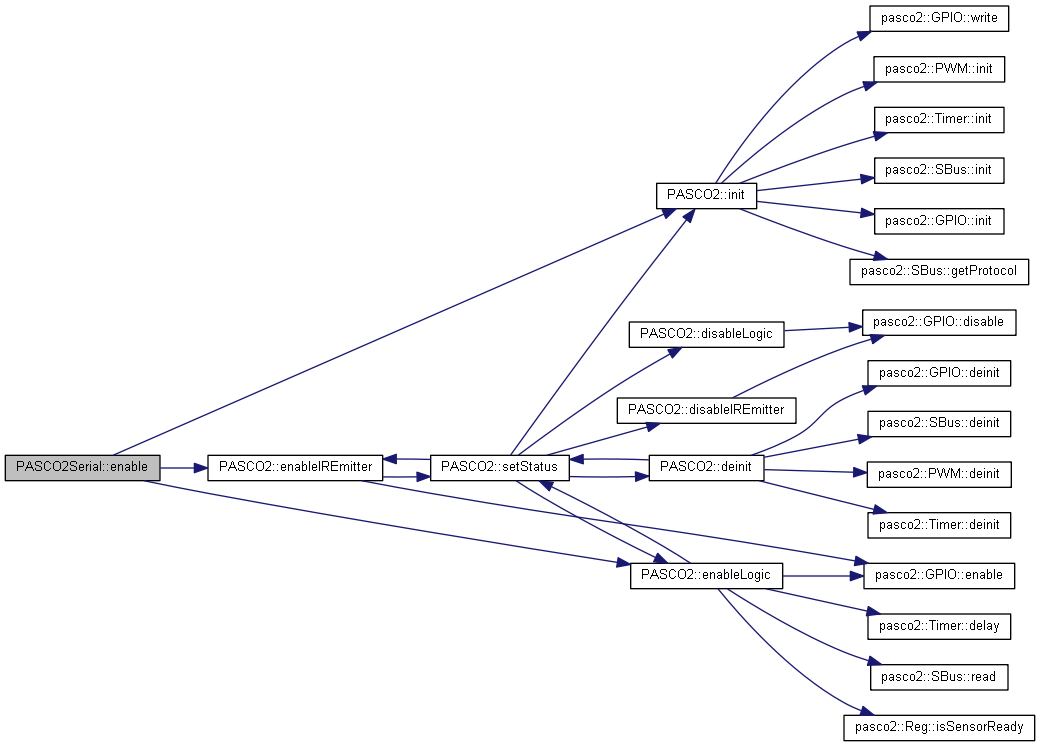

◆ enable()

Error_t PASCO2Serial::enable ( )

Enables the sensor.

Initializes the controller peripheral interfaces and enable VDD and IR emitter power of the sensor.

Note: Optional call. Each API function will set internally the required status for its operation

Returns: PAS CO2 error code

Return values

OK	if success
INTF_ERROR	if interface error
IC_POWERON_ERROR	if power-on error

Precondition: None

Here is the call graph for this function:

◆ disable()

Error_t PASCO2Serial::disable ( )

Disables the sensor.

Initializes the controller peripheral interfaces and enable VDD and IR emitter power of the sensor

Note: Optional call. Each API function will set internally the required status for its operation

Returns: PAS CO2 error code

Return values

OK	if success
INTF_ERROR	if interface error

Precondition: None

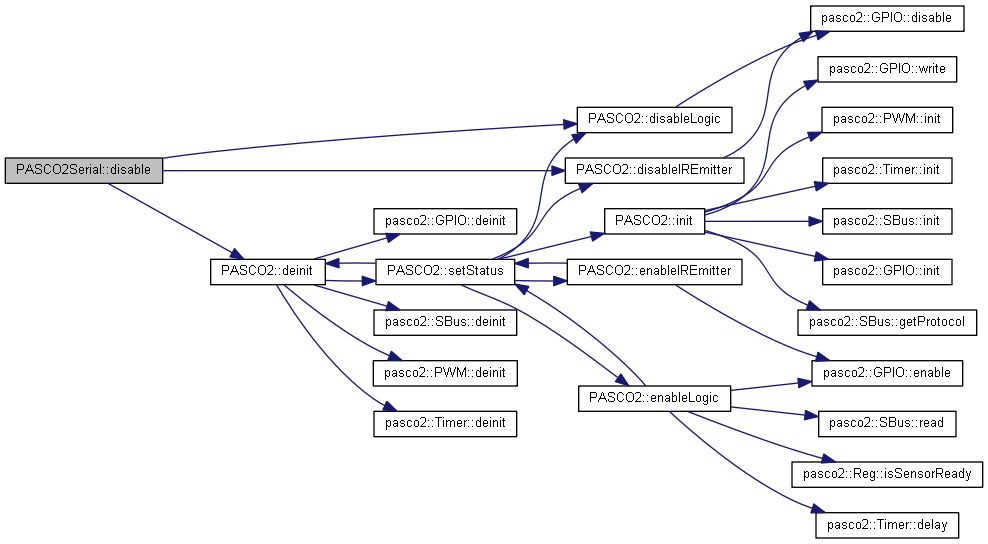

Here is the call graph for this function:

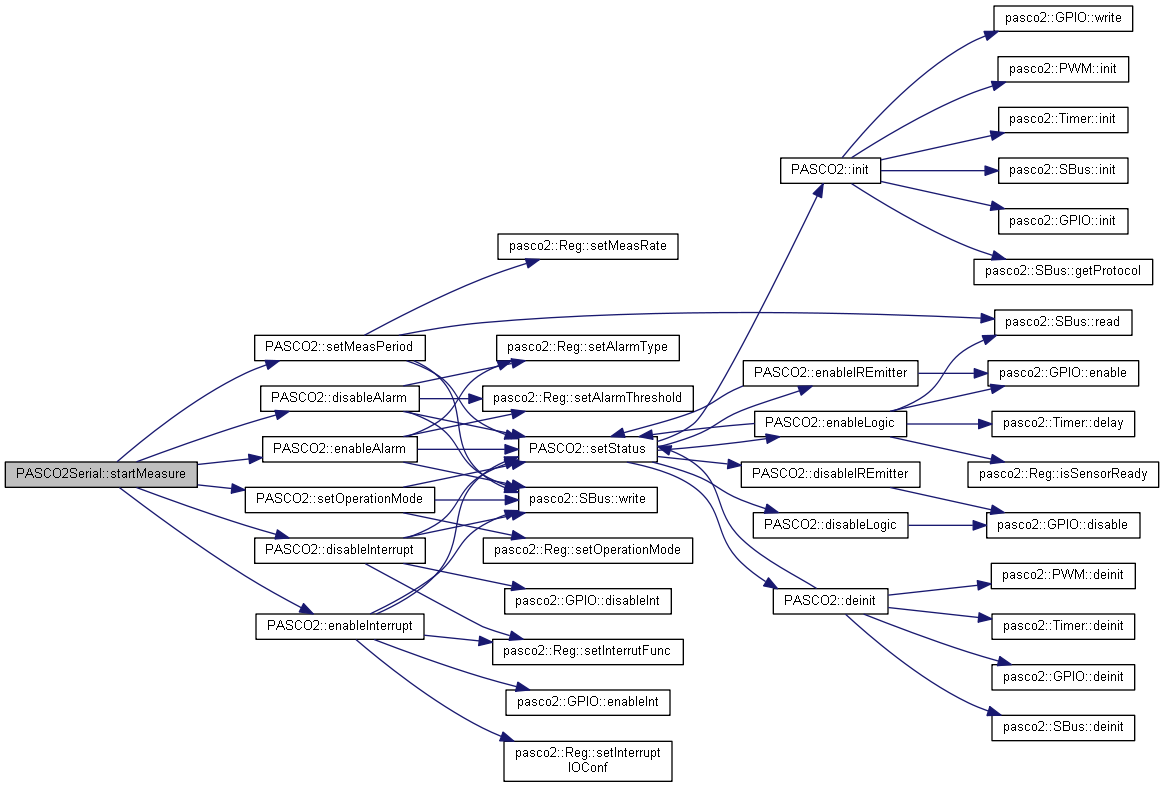

◆ startMeasure()

Error_t PASCO2Serial::startMeasure	(	int16_t	periodInSec = `0`,
		int16_t	alarmTh = `0`,
		void()(void )	cback = `nullptr`
	)

Triggers the internal measuring of the sensor.

The function start the measurement controlling the different sensor modes and features depending on the configured arguments.

Single shot

If the function is called with no arguments, the sensor will be trigger to perform a single shot measurement. The users needs to poll with getCO2() until the CO2 value is available and has been readed from the sensor. The CO2 concentration value read will be zero as long as no value is avaiable, of -1 if any error occurred in the readout attempt. Polling example:

PASCO2Serial cotwo(sbus, timer);
int16_t   co2ppm;
cotwo.startMeasure();
do{ cotwo.getCO2(co2ppm); } while (co2ppm <= 0);

Periodic measurement

Periodic measurements (periodInSec) will configure the sensor to perform a measurements every desired period. Between 5 and 4095 seconds. Without further arguments, the user has to poll with getCO2() until the value is available. Any super loop or thread routine, can just consist on reading the CO2 (getCO2()). For example, measure every 5 minutes:

PASCO2Serial cotwo(sbus, timer);
int16_t   co2ppm;
cotwo.startMeasure(300);
while(1)
{
    delay(300);
    do{ cotwo.getCO2(co2ppm); } while (co2ppm <= 0);
    // ... do something with the co2 value ...
}

Synching readouts with the hardware interrupt

In order not to saturate the sensor with constant serial requests, especially in periodic mode, it is recommended to synch the readout with a timer. Or even better using the hardware GPIO hardware interrupt. If the interrupt GPIO interface has been provided, passing a callback function will enable the interrupt mode. The type of interrupt is decided depending on the value of the rest of the arguments and operations modes. Some example:

volatile bool intFlag = false;
void cback(void *)
{
    intFlag = true;
}
PASCO2Serial cotwo(sbus, timer, interrupt);
int16_t   co2ppm;
cotwo.startMeasure(300,0,cback);
while(1)
{
    while(!intFlag) { // block or yield() };
    cotwo.getCO2(co2ppm);
    // ... do something with the co2 value ...
    intFlag = false;
}

Alarm mode

If the alarm threshold argument is non-zero, the alarm mode is activated, and an the sensor internal flag will be eanbled if the concentration of CO2 goes above the specified value. This option is better combined with the interupt mode. Thus, if the interrupt mode is available and a callback function is passed, the interrupt will occurr only when the co2 concentration goes above the threshold. This makes mostly sense for periodic measurement configuration. But it can be used as well for a single shot configuration

Parameters

[in]	periodInSec	Enables periodic measurement with the specified period. The default, value is 0, meaning single shot operation. The valid period range goes between 5 and 4095 seconds
[in]	alarmTh	Enables upper alarm threshold mode for the specified value. The default value is 0, meaning no alarm mode. For any non-zero value, the sensor will internally set the alarm flag. If an interrupt callback function is provided, then the interrupt will occurr only when the defined threshold has been tresspassed
[in]	*cback	Pointer to the callback function to be called upon interrupt

Returns: PAS CO2 error code

Return values

OK	if success
INTF_ERROR	if interface error
CONFIG_ERROR	if invalid configuration parameter

Precondition: None

Here is the call graph for this function:

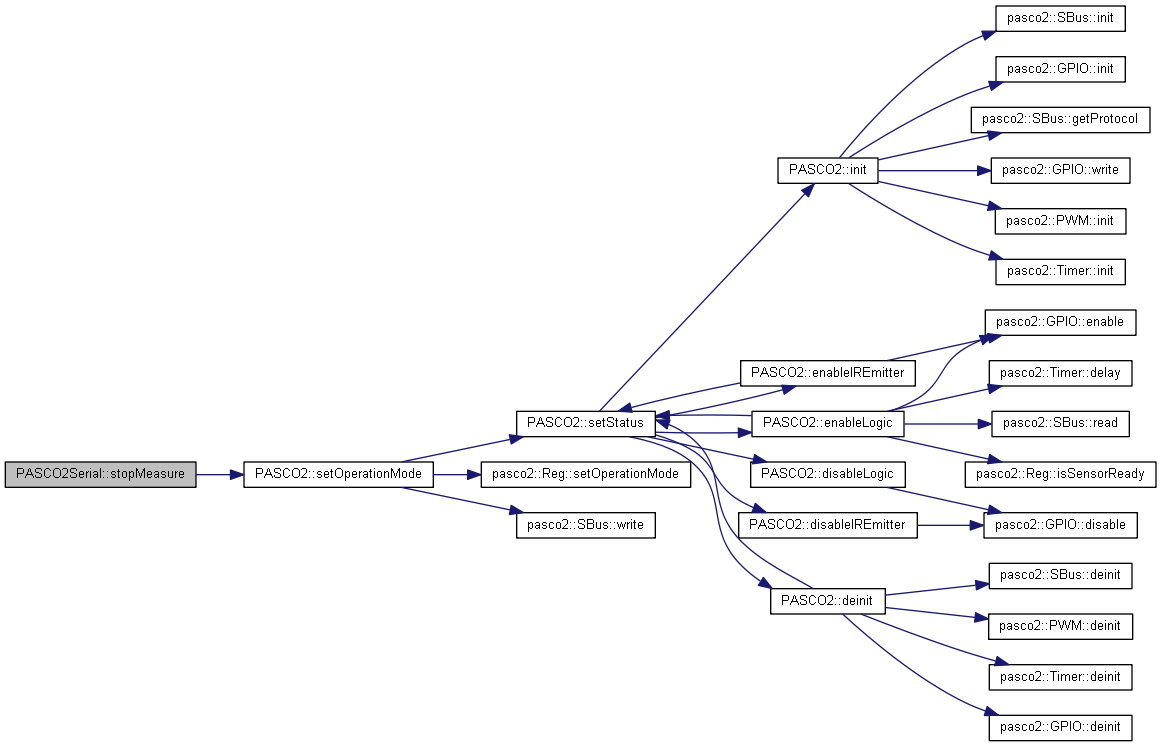

◆ stopMeasure()

Error_t PASCO2Serial::stopMeasure ( )

Stops the internal measuring of the sensor.

Sets operation mode to idle

Returns: PAS CO2 error code

Return values

OK	if success
INTF_ERROR	if interface error

Precondition: None

Here is the call graph for this function:

◆ getCO2()

Error_t PASCO2Serial::getCO2 ( int16_t & co2ppm )

Gets the CO2 concentration measured.

The value read is zero when no measurement is yet available. In case of error, the read value is set to -1. Before reading the co2 value, the measurement status register is read to know if a new measurement data is available.

Parameters

[out] co2ppm CO2 concentration read (in ppm)

Returns: PAS CO2 error code

Return values

OK	if success
INTF_ERROR	if interface error

Precondition: None

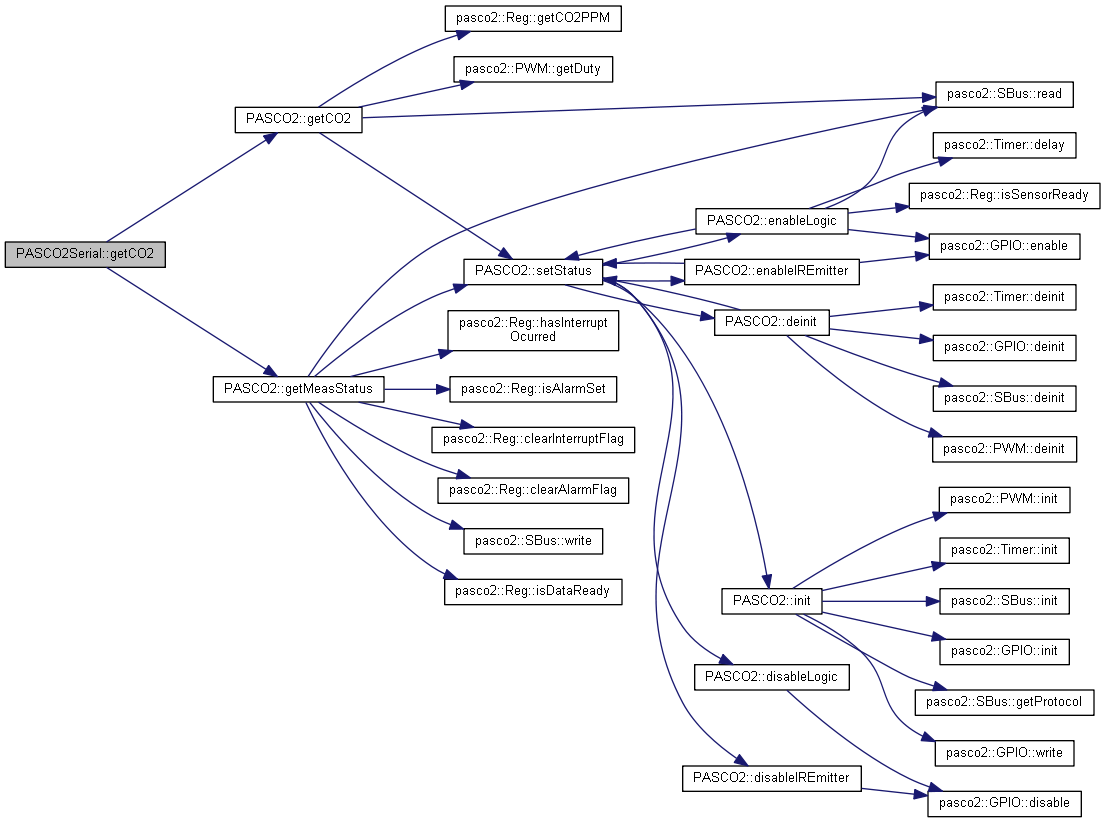

Here is the call graph for this function:

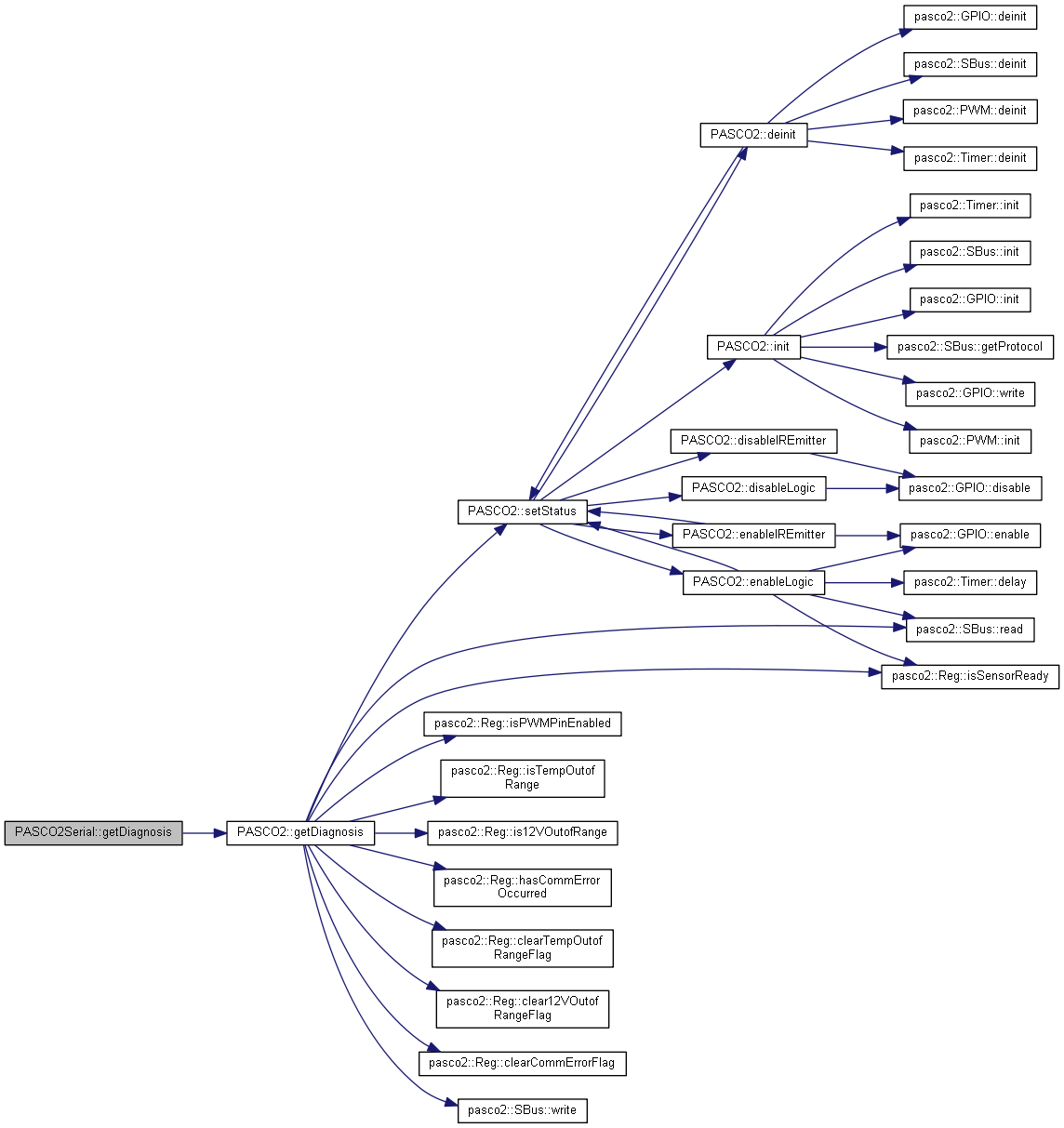

◆ getDiagnosis()

Error_t PASCO2Serial::getDiagnosis ( Diag_t & diagnosis )

Gets diagnosis information.

The sensor status registers includes the following flags:

Sensor ready
PWM pin enabled
Temperature out of range error
IR emitter voltage out of range error
Communication error which will be stored in the Diag_t struct varible passed by argument. After reading the flags, these are cleared in the device writing in the corresponding clear flag bitfields.

Parameters

[out] diagnosis Struct to store the diagnosis flags values

Returns: PAS CO2 error code

Return values

OK	if success
INTF_ERROR	if interface error

Precondition: None

Here is the call graph for this function:

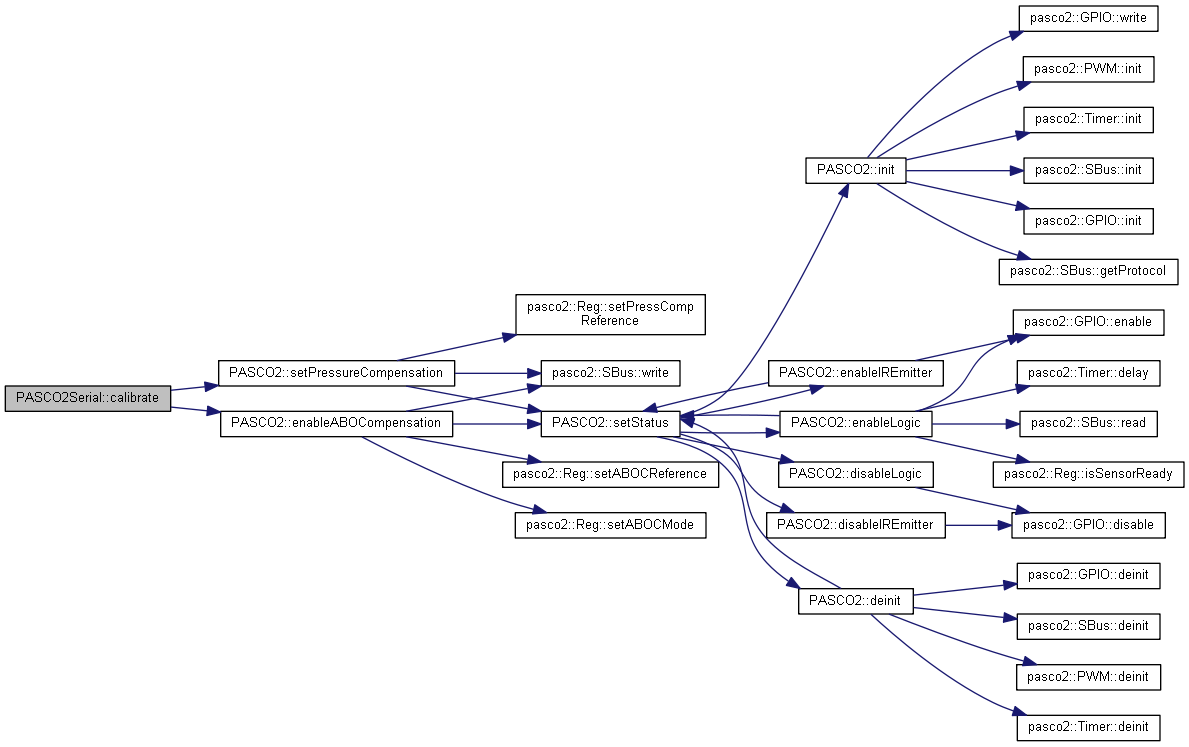

◆ calibrate()

Error_t PASCO2Serial::calibrate	(	ABOC_t	aboc,
		int16_t	abocRef,
		uint16_t	pressRef
	)

Calibrates the sensor.

Configures the automatic baseline and the reference pressure compensation

Parameters

[in]	aboc	Automatic baseline compenstation mode
[in]	abocRef	Automatic baseline compensation reference
[in]	pressRef	Pressure reference value. Min value is 600, and max 1600.

Returns: PAS CO2 error code

Return values

OK	if success
INTF_ERROR	if interface error
CONFIG_ERROR	if pressure reference value is invalid

Precondition: None

Here is the call graph for this function:

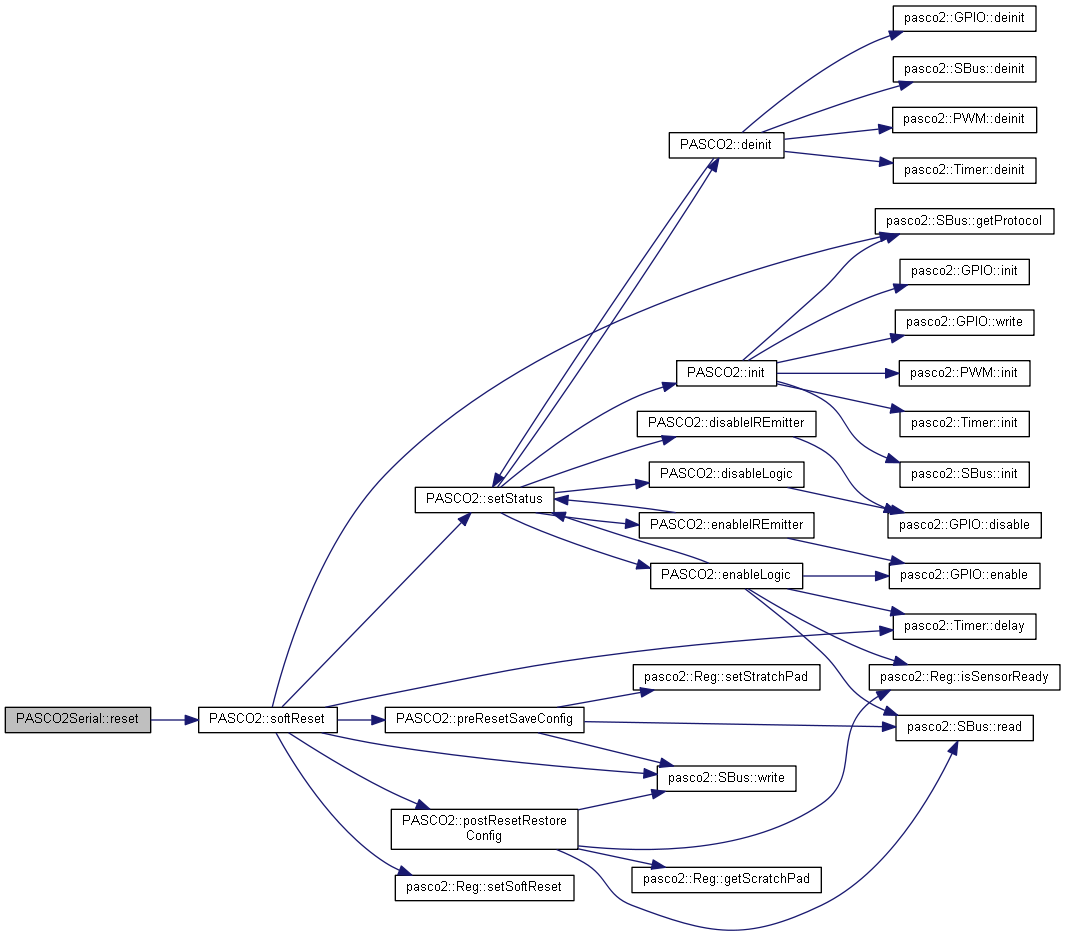

◆ reset()

Error_t PASCO2Serial::reset ( )

Resets the sensor.

The software reset performs the following operations:

Read the current sensor memory register map configuration
Send the corresponding software reset serial command
Rewrite the previous memory map configuration after reset

Returns: PAS CO2 error code

Return values

OK	if success
INTF_ERROR	if interface error
RESET_ERROR	if the device reset error

Precondition: None

Here is the call graph for this function:

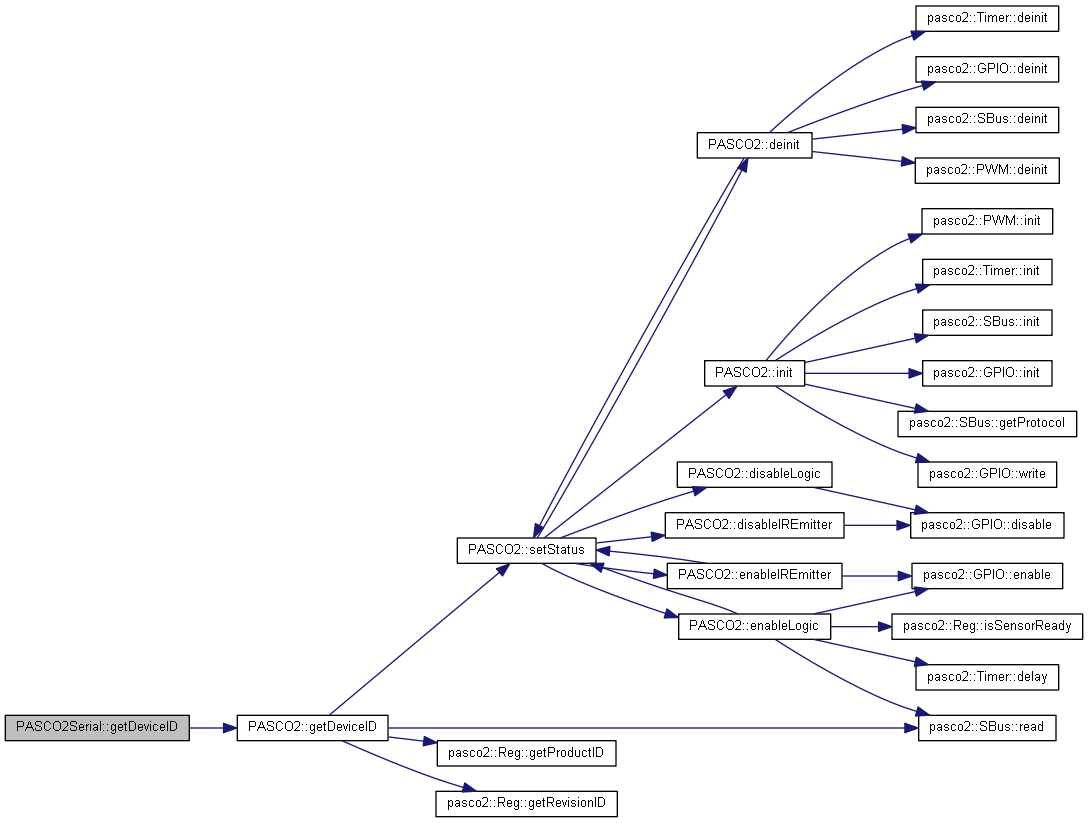

◆ getDeviceID()

Error_t PASCO2Serial::getDeviceID	(	uint8_t &	prodID,
		uint8_t &	revID
	)

Gets device product identifier.

Parameters

[out]	prodID	Product identifier
[out]	revID	Version identifier

Returns: PAS CO2 error code

Return values

OK	if success
INTF_ERROR	if interface error

Precondition: None

Here is the call graph for this function:
