The SMIF interface can be used to transmit different types of commands.
Each command has different phases: command, dummy cycles, and transmit and receive data which require separate APIs.

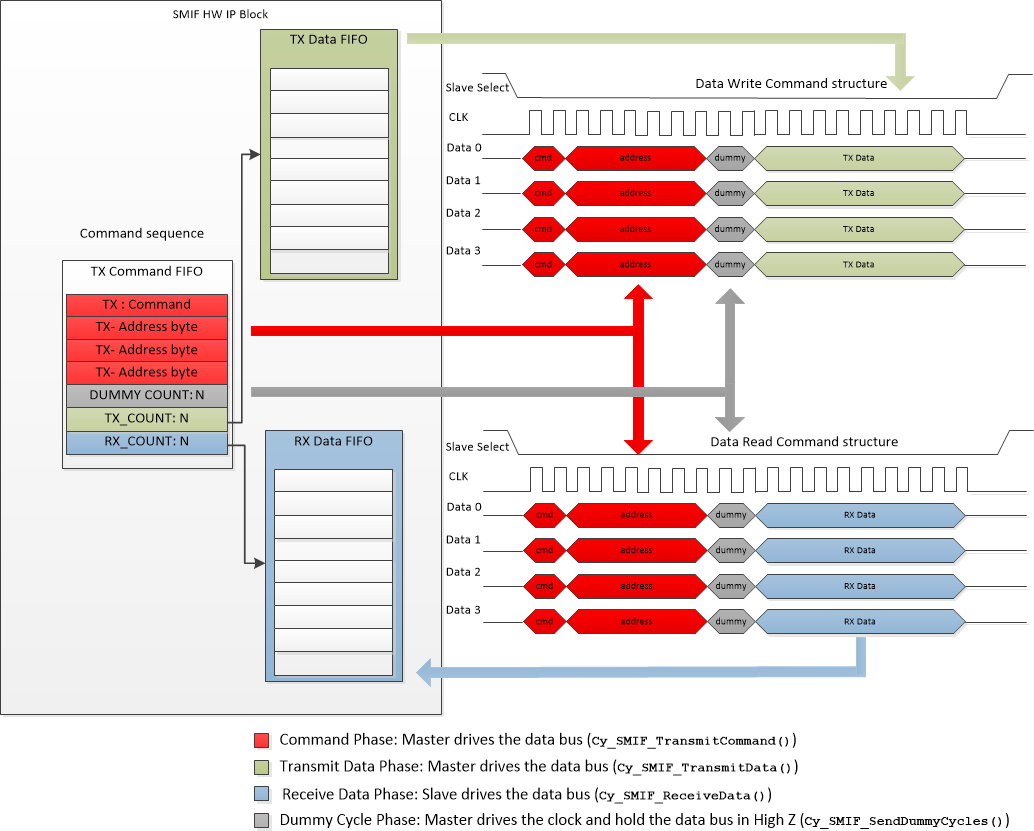

During the time that Slave Select line is active (LOW) the clock signal (CLK) is toggled while command information is first transferred on the data (IO) signals from the master to the slave. The clock continues to toggle during any period required for information access in the slave. The clock continues to toggle during the transfer of read data from the slave to the master or write data from the master to the slave. When the master has transferred the desired amount of data, the master drives the Slave Select line inactive (HIGH). Basic flow for read/write commands using Cy_SMIF_TransmitCommand, Cy_SMIF_TransmitData, Cy_SMIF_ReceiveData and Cy_SMIF_SendDummyCycles with a Quad SPI interface.
The sequence of the PDL functions required in a read or write transaction is: Cy_SMIF_TransmitCommand() -> Cy_SMIF_SendDummyCycles() -> Cy_SMIF_ReceiveData() / Cy_SMIF_TransmitData() -> Cy_SMIF_BusyCheck(). The address is sent as part of the Cy_SMIF_TransmitCommand() function. No separate function call is required.
API Reference | |
| Low Power Callback | |
| The driver supports SysPm callback for Deep Sleep and Hibernate transition. | |
Functions | |
| cy_en_smif_status_t | Cy_SMIF_CacheInvalidate (SMIF_Type *base, cy_en_smif_cache_t cacheType) |
| void | Cy_SMIF_Enable (SMIF_Type *base, cy_stc_smif_context_t *context) |
| cy_en_smif_status_t | Cy_SMIF_Encrypt (SMIF_Type *base, uint32_t address, uint8_t data[], uint32_t size, cy_stc_smif_context_t const *context) |
| SMIF_DEVICE_Type volatile * | Cy_SMIF_GetDeviceBySlot (SMIF_Type *base, cy_en_smif_slave_select_t slaveSelect) |
| cy_en_smif_mode_t | Cy_SMIF_GetMode (SMIF_Type const *base) |
| cy_en_smif_status_t | Cy_SMIF_Init (SMIF_Type *base, cy_stc_smif_config_t const *config, uint32_t timeout, cy_stc_smif_context_t *context) |
| cy_en_smif_status_t | Cy_SMIF_SetCryptoEnable (SMIF_Type *base, cy_en_smif_slave_select_t slaveId) |
| void | Cy_SMIF_SetCryptoKey (SMIF_Type *base, uint32_t *key) |
| void | Cy_SMIF_SetDataSelect (SMIF_Type *base, cy_en_smif_slave_select_t slaveSelect, cy_en_smif_data_select_t dataSelect) |
| void | Cy_SMIF_SetMode (SMIF_Type *base, cy_en_smif_mode_t mode) |
| BOOL8 | Cy_SMIF_BusyCheck (SMIF_Type const *base) |
| uint32_t | Cy_SMIF_GetCmdFifoStatus (SMIF_Type const *base) |
| void | Cy_SMIF_PushTxFifo (SMIF_Type *baseaddr, cy_stc_smif_context_t *context) |
| Writes transmitted data into the FIFO. More... | |
| void | Cy_SMIF_PopRxFifo (SMIF_Type *baseaddr, cy_stc_smif_context_t *context) |
| Reads received data from the FIFO. More... | |
| cy_en_smif_status_t | Cy_SMIF_SendDummyCycles (SMIF_Type *base, uint32_t cycles) |
| cy_en_smif_status_t | Cy_SMIF_SendDummyCycles_Ext (SMIF_Type *base, cy_en_smif_txfr_width_t transferWidth, cy_en_smif_data_rate_t dataRate, uint32_t cycles) |
| void | Cy_SMIF_DeInit (SMIF_Type *base) |
| cy_en_smif_status_t | Cy_SMIF_TransmitCommand (SMIF_Type *base, uint8_t cmd, cy_en_smif_txfr_width_t cmdTxfrWidth, uint8_t const cmdParam[], uint32_t paramSize, cy_en_smif_txfr_width_t paramTxfrWidth, cy_en_smif_slave_select_t slaveSelect, uint32_t completeTxfr, cy_stc_smif_context_t const *context) |
| cy_en_smif_status_t | Cy_SMIF_TransmitData (SMIF_Type *base, uint8_t const *txBuffer, uint32_t size, cy_en_smif_txfr_width_t transferWidth, cy_smif_event_cb_t TxCompleteCb, cy_stc_smif_context_t *context) |
| cy_en_smif_status_t | Cy_SMIF_TransmitDataBlocking (SMIF_Type *base, uint8_t const *txBuffer, uint32_t size, cy_en_smif_txfr_width_t transferWidth, cy_stc_smif_context_t const *context) |
| cy_en_smif_status_t | Cy_SMIF_ReceiveData (SMIF_Type *base, uint8_t *rxBuffer, uint32_t size, cy_en_smif_txfr_width_t transferWidth, cy_smif_event_cb_t RxCompleteCb, cy_stc_smif_context_t *context) |
| cy_en_smif_status_t | Cy_SMIF_ReceiveDataBlocking (SMIF_Type *base, uint8_t *rxBuffer, uint32_t size, cy_en_smif_txfr_width_t transferWidth, cy_stc_smif_context_t const *context) |
| uint32_t | Cy_SMIF_GetTransferStatus (SMIF_Type const *base, cy_stc_smif_context_t const *context) |
| cy_en_smif_status_t | Cy_SMIF_TransmitCommand_Ext (SMIF_Type *base, uint16_t cmd, BOOL8 isCommand2byte, cy_en_smif_txfr_width_t cmdTxfrWidth, cy_en_smif_data_rate_t cmdDataRate, uint8_t const cmdParam[], uint32_t paramSize, cy_en_smif_txfr_width_t paramTxfrWidth, cy_en_smif_data_rate_t paramDataRate, cy_en_smif_slave_select_t slaveSelect, uint32_t completeTxfr, cy_stc_smif_context_t const *context) |
| cy_en_smif_status_t | Cy_SMIF_TransmitData_Ext (SMIF_Type *base, uint8_t const *txBuffer, uint32_t size, cy_en_smif_txfr_width_t transferWidth, cy_en_smif_data_rate_t dataDataRate, cy_smif_event_cb_t TxCmpltCb, cy_stc_smif_context_t *context) |
| cy_en_smif_status_t | Cy_SMIF_TransmitDataBlocking_Ext (SMIF_Type *base, uint8_t const *txBuffer, uint32_t size, cy_en_smif_txfr_width_t transferWidth, cy_en_smif_data_rate_t dataDataRate, cy_stc_smif_context_t const *context) |
| cy_en_smif_status_t | Cy_SMIF_ReceiveData_Ext (SMIF_Type *base, uint8_t *rxBuffer, uint32_t size, cy_en_smif_txfr_width_t transferWidth, cy_en_smif_data_rate_t dataRate, cy_smif_event_cb_t RxCmpltCb, cy_stc_smif_context_t *context) |
| cy_en_smif_status_t | Cy_SMIF_ReceiveDataBlocking_Ext (SMIF_Type *base, uint8_t *rxBuffer, uint32_t size, cy_en_smif_txfr_width_t transferWidth, cy_en_smif_data_rate_t dataRate, cy_stc_smif_context_t const *context) |
| void | Cy_SMIF_Interrupt (SMIF_Type *base, cy_stc_smif_context_t *context) |
| cy_en_smif_status_t | Cy_SMIF_CacheEnable (SMIF_Type *base, cy_en_smif_cache_t cacheType) |
| cy_en_smif_status_t | Cy_SMIF_CacheDisable (SMIF_Type *base, cy_en_smif_cache_t cacheType) |
| cy_en_smif_status_t | Cy_SMIF_CachePrefetchingEnable (SMIF_Type *base, cy_en_smif_cache_t cacheType) |
| cy_en_smif_status_t | Cy_SMIF_CachePrefetchingDisable (SMIF_Type *base, cy_en_smif_cache_t cacheType) |
| void | Cy_SMIF_SetCryptoIV (SMIF_Type *base, uint32_t *nonce) |
| cy_en_smif_status_t | Cy_SMIF_ConvertSlaveSlotToIndex (cy_en_smif_slave_select_t ss, uint32_t *device_idx) |
| void | Cy_SMIF_SetRxCaptureMode (SMIF_Type *base, cy_en_smif_capture_mode_t mode) |
| cy_en_smif_status_t | Cy_SMIF_Bridge_Enable (SMIF_Base_Type *base, BOOL8 enable) |
| cy_en_smif_status_t | Cy_SMIF_Bridge_SetPortPriority (SMIF_Base_Type *base, cy_stc_smif_bridge_pri_t *bridge_priority) |
| cy_en_smif_status_t | Cy_SMIF_Bridge_SetSimpleRemapRegion (SMIF_Base_Type *base, const cy_stc_smif_bridge_remap_t *region_info) |
| cy_en_smif_status_t | Cy_SMIF_Bridge_SetInterleavingRemapRegion (SMIF_Base_Type *base, const cy_stc_smif_bridge_interleave_remap_t *region_info) |
| cy_en_smif_status_t | Cy_SMIF_Bridge_DeactivateRemapRegion (SMIF_Base_Type *base, uint32_t regionIdx) |
| void Cy_SMIF_PushTxFifo | ( | SMIF_Type * | baseaddr, |
| cy_stc_smif_context_t * | context | ||
| ) |
Writes transmitted data into the FIFO.
| void Cy_SMIF_PopRxFifo | ( | SMIF_Type * | baseaddr, |
| cy_stc_smif_context_t * | context | ||
| ) |
Reads received data from the FIFO.
