PASCO2Pulse Class Reference

#include <pas-co2-pulse.hpp>

Inheritance diagram for PASCO2Pulse:

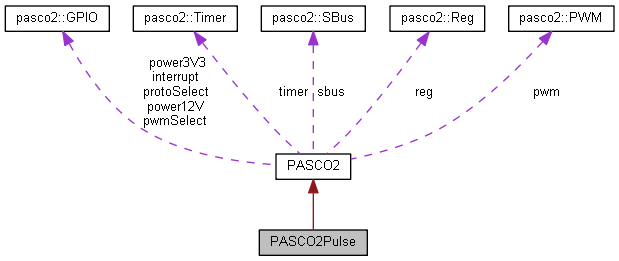

Collaboration diagram for PASCO2Pulse:

Public Member Functions
	PASCO2Pulse (PWM *const pwm, Timer *const timer=nullptr, pasco2::GPIO *const interrupt=nullptr, pasco2::GPIO *const power3V3=nullptr, pasco2::GPIO *const power12V=nullptr, pasco2::GPIO *const pwmSelect=nullptr)
	PAS CO2 Pulse Constructor. More...
virtual	~PASCO2Pulse ()
	PAS CO2 Pulse Destructor. More...
Error_t	enable ()
	Enables the sensor. More...
Error_t	disable ()
	Disables the sensor. More...
Error_t	startMeasure (void(*cback)(void *)=nullptr)
	Triggers the internal measuring of the sensor. More...
Error_t	stopMeasure ()
	Stops the internal measuring of the sensor. More...
Error_t	getCO2 (int16_t &co2ppm)
	Gets the CO2 concentration measured. More...
Error_t	reset ()
	Resets the sensor. More...

Constructor & Destructor Documentation

PASCO2Pulse()

PASCO2Pulse::PASCO2Pulse	(	PWM *const	pwm,
		Timer *const	timer = nullptr,
		pasco2::GPIO *const	interrupt = nullptr,
		pasco2::GPIO *const	power3V3 = nullptr,
		pasco2::GPIO *const	power12V = nullptr,
		pasco2::GPIO *const	pwmSelect = nullptr
	)

PAS CO2 Pulse Constructor.

Mandatory arguments:

• The PWM needs to be provided
• A timer instance (currently default as nullptr.TODO: Needs to be changed!)

Optional arguments:

• All GPIO instances.

Most of the GPIO will be fixed by hardware. In particular those enabling the sensor main power and the emitter power. They are part of the sensor library to provide potential absolute control by software. The hardware interface and its features, are also provided in the library. But it can be as well handled externally

Parameters

[in]	*PWM	PWM instance
[in]	*timer	Timer instance
[in]	*interrupt	Interrupt GPIO instance. Default is nullptr
[in]	*power3V3	Power 3V3 control GPIO instance. Default is nullptr
[in]	*power12V	Power 12V control GPIO instance. Default is nullptr
[in]	*pwmSelect	PWM select GPIO instance. Default is nullptr

Precondition

None

~PASCO2Pulse()

PASCO2Pulse::~PASCO2Pulse ( )

virtual

PAS CO2 Pulse Destructor.

Precondition

None

Member Function Documentation

enable()

Error_t PASCO2Pulse::enable

(

)

Enables the sensor.

Initializes the controller peripheral interfaces and enable VDD and IR emitter power of the sensor

Note

Optional call. Each API function will set internally the required status for its operation

Returns

PAS CO2 error code

Return values

OK	if success
INTF_ERROR	if interface error
IC_POWERON_ERROR	if power-on error

Precondition

None

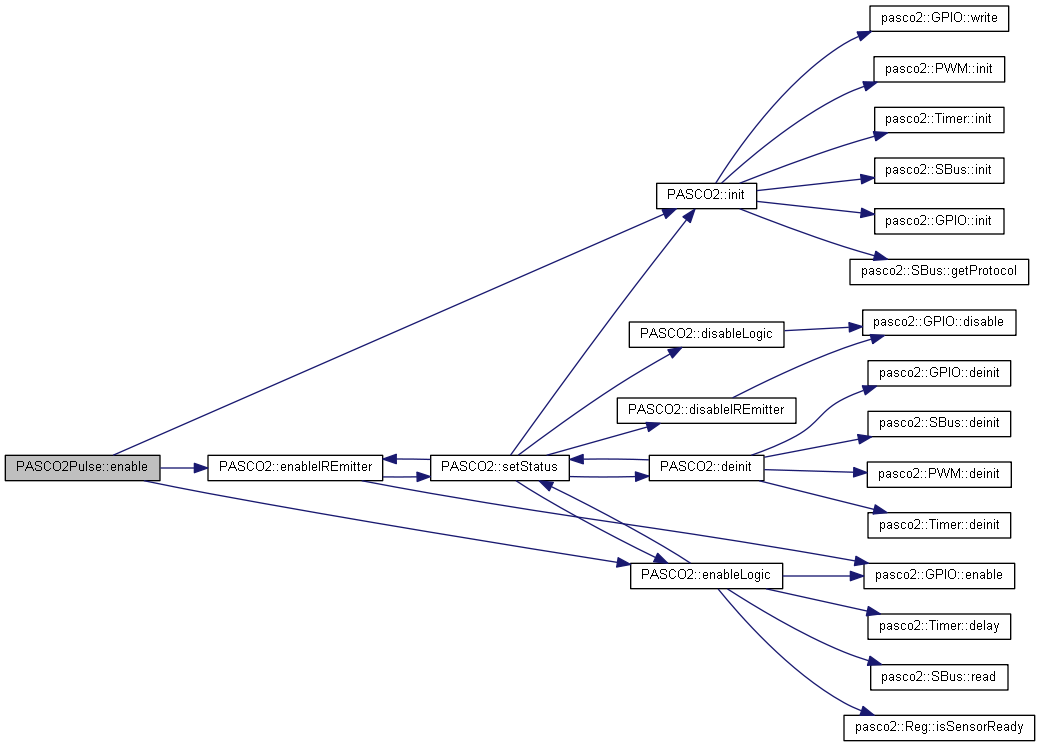

Here is the call graph for this function:

disable()

Error_t PASCO2Pulse::disable

(

)

Disables the sensor.

Initializes the controller peripheral interfaces and enable VDD and IR emitter power of the sensor

Note

Optional call. Each API function will set internally the required status for its operation

Returns

PAS CO2 error code

Return values

OK	if success
INTF_ERROR	if interface error

Precondition

None

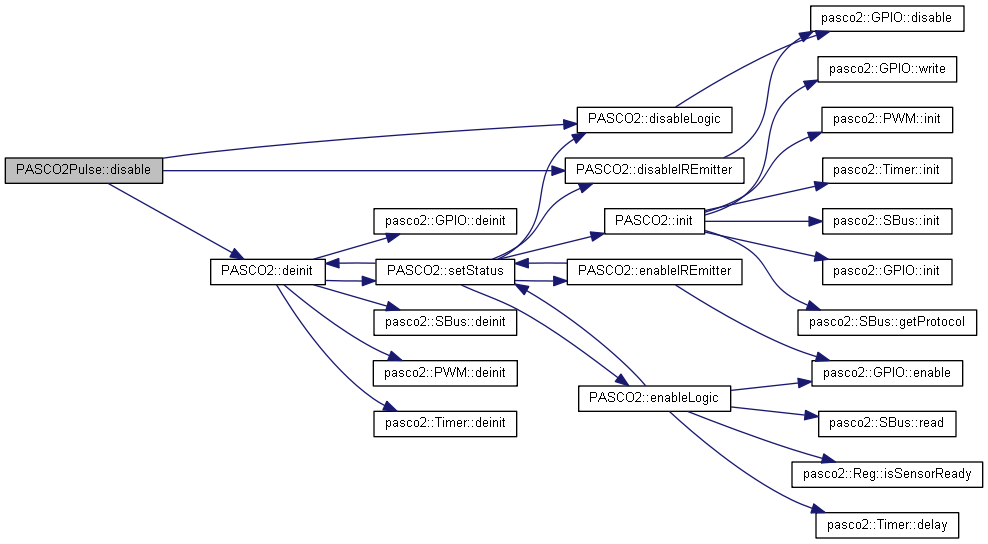

Here is the call graph for this function:

startMeasure()

Error_t PASCO2Pulse::startMeasure

(

void(*)(void *)

cback = nullptr

)

Triggers the internal measuring of the sensor.

The PWM select signal will be enabled if it is available. If this signal is fixed on hardware, the sensor will already output the PWM signal without the need of calling startMeasure().

By default, if no other setup has been configured through the serial interface, a pulse train will be provided by the sensor every 1 min.

Optionally, if a callback is passed by argument, the interrupt event will occur approximately 1 second before the measurement starts. This can be used for synching the pwm redouts on the microcontroller. Some example:

volatile bool intFlag = false;
void cback(void *)
{
    intFlag = true;
}

PASCO2Pulse cotwo(pwm, timer, interrupt);
int16_t   co2ppm;

cotwo.startMeasure(cback);

while(1)
{
    while(!intFlag) { // block or yield() };
    cotwo.getCO2(co2ppm);
    // ... do something with the co2 value ...
    intFlag = false;
}

Warning

If no PWM select GPIO instance is available and no interrupt GPIO instance, the function does nothing and returns without error (OK)

Parameters

[in]

*cback

Pointer to the callback function to be called upon interrupt. Default is nullptr

Returns

PAS CO2 error code

Return values

OK	if success
INTF_ERROR	if interface error
CONFIG_ERROR	if invalid configuration parameter

Precondition

None

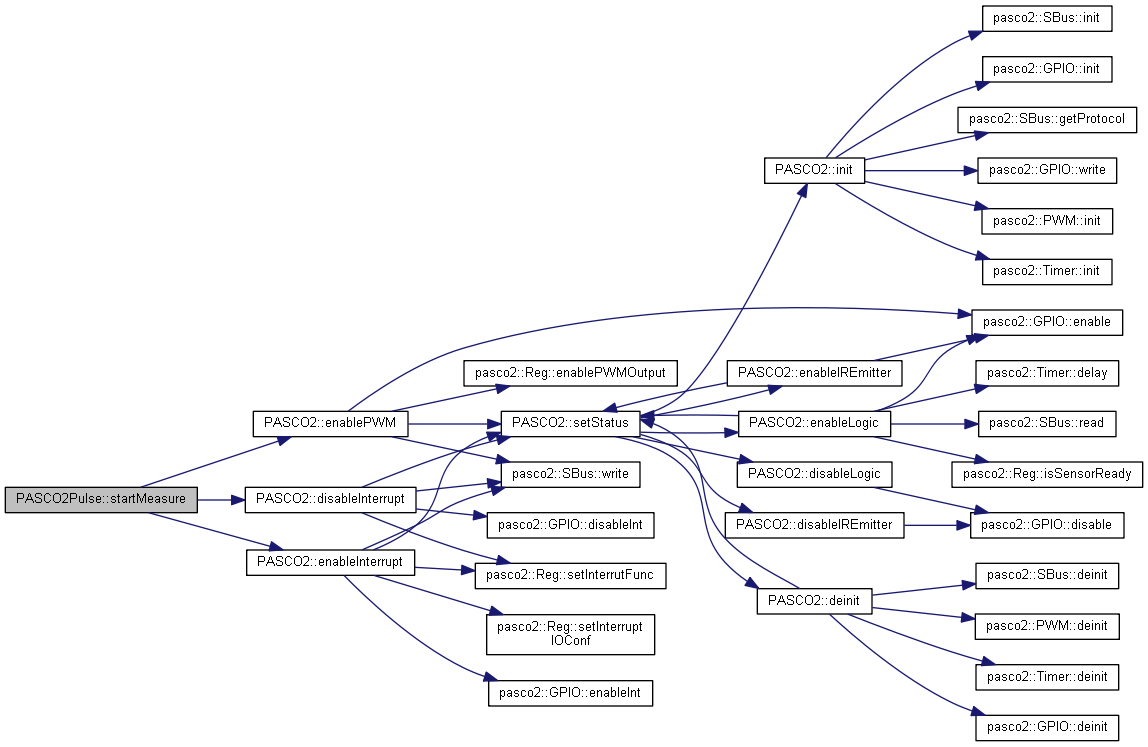

Here is the call graph for this function:

stopMeasure()

Error_t PASCO2Pulse::stopMeasure

(

)

Stops the internal measuring of the sensor.

Disables the PWM select signal

Warning

PWM select GPIO interface required. If unavailable the function does nothing and returns without error (OK)

Returns

PAS CO2 error code

Return values

OK	if success
INTF_ERROR	if interface error

Precondition

None

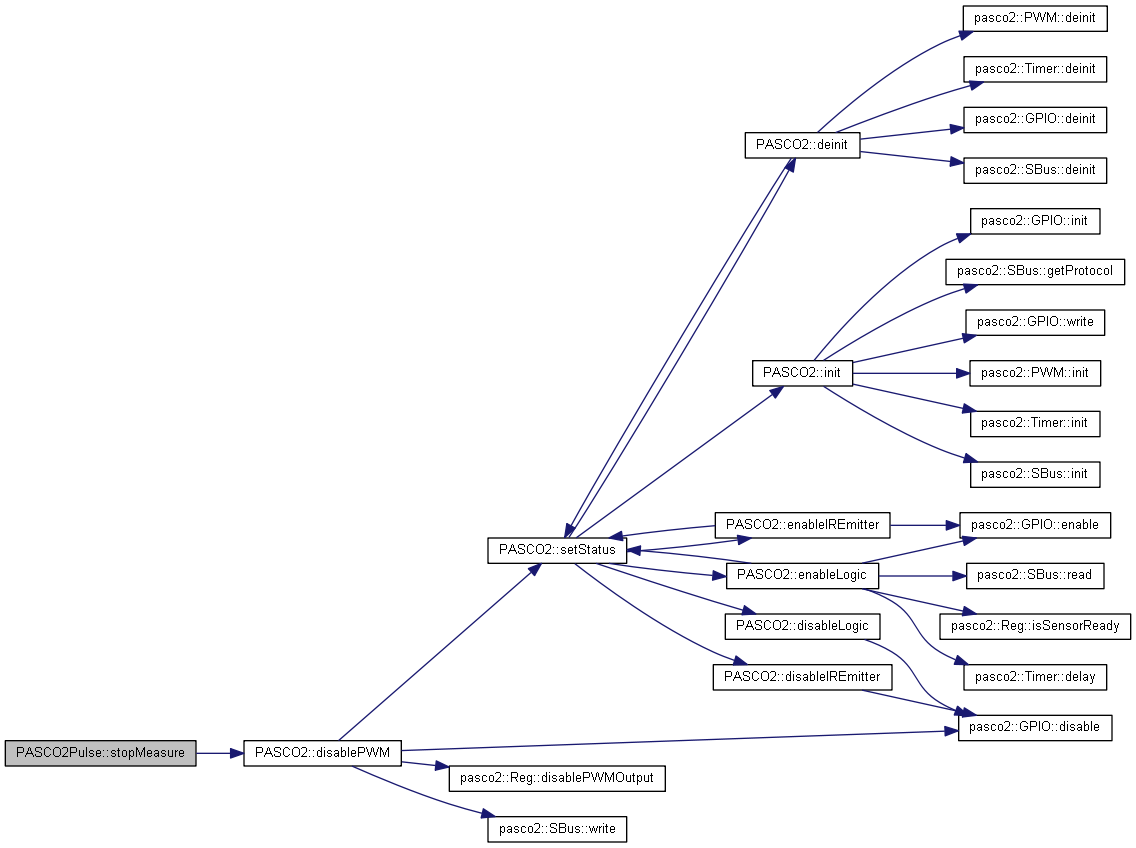

Here is the call graph for this function:

getCO2()

Error_t PASCO2Pulse::getCO2

(

int16_t &

co2ppm

)

Gets the CO2 concentration measured.

The value read is zero when no measurement is yet available. In case of error, the read value is set to -1

Parameters

[out]

co2ppm

CO2 concentration read (in ppm)

Returns

PAS CO2 error code

Return values

OK	if success
INTF_ERROR	if interface error

Precondition

None

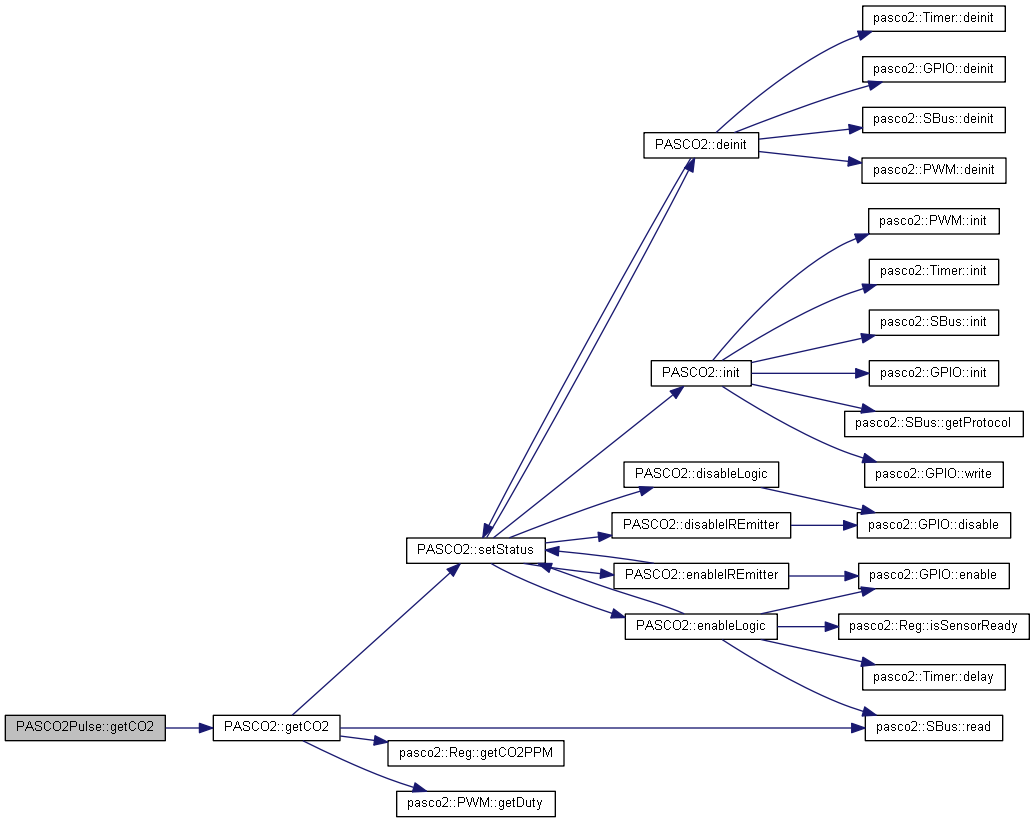

Here is the call graph for this function:

reset()

Error_t PASCO2Pulse::reset

(

)

Resets the sensor.

The hardware reset will disable 3V3 power output for 200 ms to perform a hardware reset

Warning

Power 3V3 GPIO interface required. If unavailable the function does nothing and returns without error (OK)

Returns

PAS CO2 error code

Return values

OK	if success
INTF_ERROR	if interface error
RESET_ERROR	if the device reset error

Precondition

None

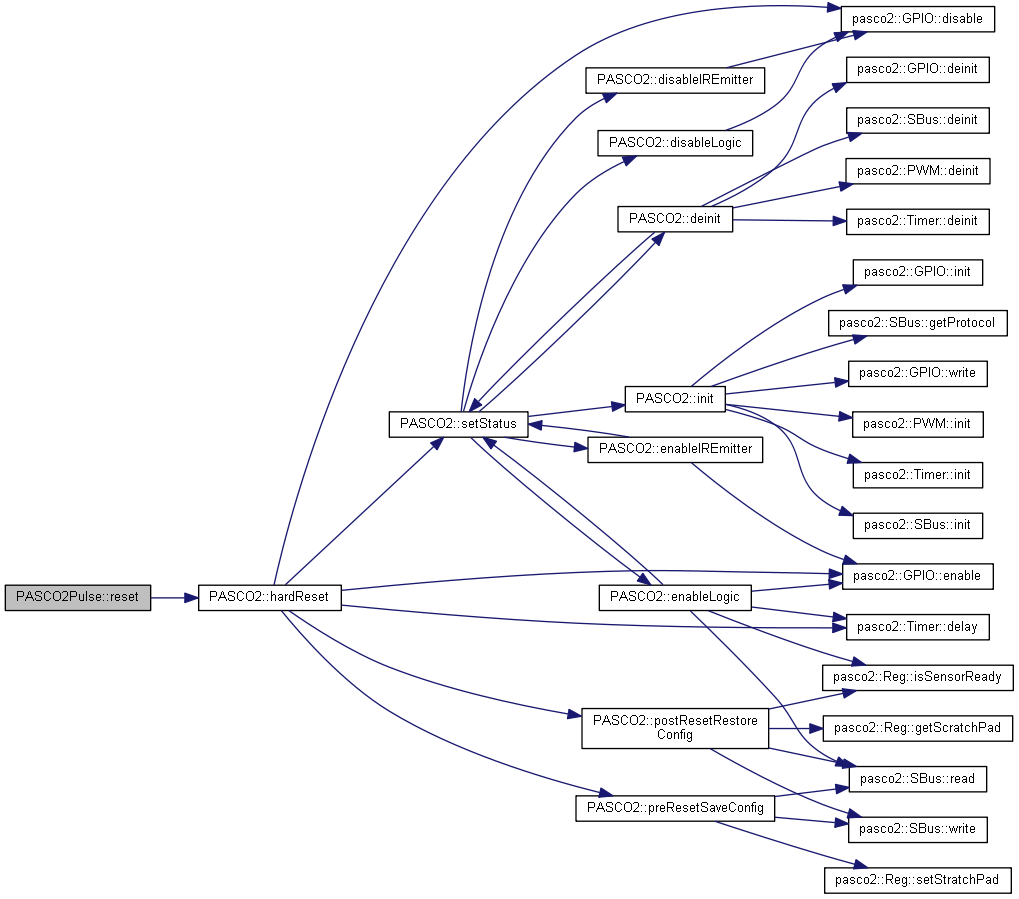

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• pas-co2-pulse.hpp
• pas-co2-pulse.cpp
