This file defines APIs, types and data structures used in the OPTIGA example. More...

#include "optiga/optiga_lib_config.h"
#include "optiga/common/optiga_lib_logger.h"

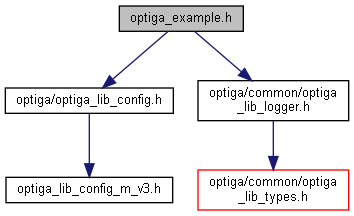

Include dependency graph for optiga_example.h:

#define	START_TIMER (TRUE)

#define	STOPTIMER_AND_CALCULATE (FALSE)

#define	OPTIGA_LIB_ENABLE_EXAMPLE_LOGGING

#define	OPTIGA_EXAMPLE "[optiga example] : "

#define	OPTIGA_EXAMPLE_COLOR OPTIGA_LIB_LOGGER_COLOR_DEFAULT

#define	START_PERFORMANCE_MEASUREMENT(time_taken) example_performance_measurement(&time_taken, START_TIMER)

#define	READ_PERFORMANCE_MEASUREMENT(time_taken) example_performance_measurement(&time_taken, STOPTIMER_AND_CALCULATE)

#define	WAIT_AND_CHECK_STATUS(return_status, optiga_lib_status)

#define	OPTIGA_EXAMPLE_LOG_MESSAGE(msg)
	Logs the message provided from Application layer. More...

#define	OPTIGA_EXAMPLE_LOG_HEX_DATA(array, array_len)
	Logs the byte array buffer provided from Application layer in hexadecimal format. More...

#define	OPTIGA_EXAMPLE_LOG_STATUS(return_value)
	Logs the status info provided from Application layer. More...

#define	OPTIGA_EXAMPLE_LOG_PERFORMANCE_VALUE(time_taken, return_value)

#define	OPTIGA_EXAMPLE_PROTECTED_UPDATE_PERFORMANCE_VALUE(time_taken)

char	performance_buffer_string [30]

void	example_performance_measurement (uint32_t *time_value, uint8_t time_reset_flag)

Detailed Description

This file defines APIs, types and data structures used in the OPTIGA example.

Author: Infineon Technologies AG

Definition in file optiga_example.h.

Macro Definition Documentation

◆ OPTIGA_EXAMPLE

#define OPTIGA_EXAMPLE "[optiga example] : "

Definition at line 59 of file optiga_example.h.

◆ OPTIGA_EXAMPLE_COLOR

#define OPTIGA_EXAMPLE_COLOR OPTIGA_LIB_LOGGER_COLOR_DEFAULT

Definition at line 62 of file optiga_example.h.

◆ OPTIGA_EXAMPLE_LOG_HEX_DATA

#define OPTIGA_EXAMPLE_LOG_HEX_DATA	(	array,
		array_len
	)

Value:

{\
    optiga_lib_print_array_hex_format(array,array_len,OPTIGA_UNPROTECTED_DATA_COLOR);\
}

Logs the byte array buffer provided from Application layer in hexadecimal format.

Logs the byte array buffer provided from Application layer in hexadecimal format

Precondition

Note

None

Parameters

[in]	array	Valid pointer to array to be logged
[in]	array_len	Length of array buffer

Definition at line 119 of file optiga_example.h.

◆ OPTIGA_EXAMPLE_LOG_MESSAGE

#define OPTIGA_EXAMPLE_LOG_MESSAGE ( msg )

Value:

{\
    optiga_lib_print_message(msg,OPTIGA_EXAMPLE,OPTIGA_EXAMPLE_COLOR);\
}

Logs the message provided from Application layer.

Logs the message provided from Application layer

Precondition

Note

None

Parameters

[in] msg Valid pointer to string to be logged

Definition at line 99 of file optiga_example.h.

◆ OPTIGA_EXAMPLE_LOG_PERFORMANCE_VALUE

#define OPTIGA_EXAMPLE_LOG_PERFORMANCE_VALUE	(	time_taken,
		return_value
	)

Value:

{   \
    if(OPTIGA_LIB_SUCCESS == return_value)  \
    {   \
        sprintf(performance_buffer_string, "Example takes %d msec", (int)time_taken);    \
        OPTIGA_EXAMPLE_LOG_MESSAGE(performance_buffer_string);  \
    }   \
}

Definition at line 157 of file optiga_example.h.

◆ OPTIGA_EXAMPLE_LOG_STATUS

#define OPTIGA_EXAMPLE_LOG_STATUS ( return_value )

Value:

{ \
    if (OPTIGA_LIB_SUCCESS != return_value) \
    { \
        optiga_lib_print_status(OPTIGA_EXAMPLE,OPTIGA_ERROR_COLOR,return_value); \
    } \
    else\
    { \
        optiga_lib_print_status(OPTIGA_EXAMPLE,OPTIGA_EXAMPLE_COLOR,return_value); \
    } \
}

Logs the status info provided from Application layer.

Logs the status info provided from Application layer

Precondition

Note

None

Parameters

[in] return_value Status information Application layer

Definition at line 138 of file optiga_example.h.

◆ OPTIGA_EXAMPLE_PROTECTED_UPDATE_PERFORMANCE_VALUE

#define OPTIGA_EXAMPLE_PROTECTED_UPDATE_PERFORMANCE_VALUE ( time_taken )

Value:

{   \
        sprintf(performance_buffer_string, "Execution time %d msec", (int)time_taken);    \
        OPTIGA_EXAMPLE_LOG_MESSAGE(performance_buffer_string);  \
}

Definition at line 166 of file optiga_example.h.

◆ OPTIGA_LIB_ENABLE_EXAMPLE_LOGGING

#define OPTIGA_LIB_ENABLE_EXAMPLE_LOGGING

Definition at line 56 of file optiga_example.h.

◆ READ_PERFORMANCE_MEASUREMENT

#define READ_PERFORMANCE_MEASUREMENT ( time_taken ) example_performance_measurement(&time_taken, STOPTIMER_AND_CALCULATE)

Definition at line 68 of file optiga_example.h.

◆ START_PERFORMANCE_MEASUREMENT

#define START_PERFORMANCE_MEASUREMENT ( time_taken ) example_performance_measurement(&time_taken, START_TIMER)

Definition at line 65 of file optiga_example.h.

◆ START_TIMER

#define START_TIMER (TRUE)

Definition at line 51 of file optiga_example.h.

◆ STOPTIMER_AND_CALCULATE

#define STOPTIMER_AND_CALCULATE (FALSE)

Definition at line 53 of file optiga_example.h.

◆ WAIT_AND_CHECK_STATUS

#define WAIT_AND_CHECK_STATUS	(	return_status,
		optiga_lib_status
	)

Value:

                            if (OPTIGA_LIB_SUCCESS != return_status)\
                            {\
                                break;\
                            }\
                            while (OPTIGA_LIB_BUSY == optiga_lib_status)\
                            { }\
                            if (OPTIGA_LIB_SUCCESS != optiga_lib_status)\
                            {\
                                return_status = optiga_lib_status;\
                                break;\
                            }\

Definition at line 71 of file optiga_example.h.

Function Documentation

◆ example_performance_measurement()

void example_performance_measurement	(	uint32_t *	time_value,
		uint8_t	time_reset_flag
	)

Variable Documentation

◆ performance_buffer_string

char performance_buffer_string[30]

extern
