HallSpeed Class Reference

#include <hall-speed.hpp>

Inheritance diagram for HallSpeed:

Collaboration diagram for HallSpeed:

Classes
class	Timer

Public Types
typedef void(*	CBackSpd_t) (double)
	Callback function type for interrupt mode.
Speed units
enum	SpeedUnit_t { HERTZ = 0 , RADS = 1 , RPM = 2 }
Public Types inherited from HallSwitch
typedef void(*	CBack_t) (Result_t)
	Callback function type for interrupt mode.
enum	Error_t { OK = 0 , INTF_ERROR = -1 , CONF_ERROR = -2 }
enum	PowerMode_t { MAIN = 1 , SWITCH = 2 }
enum	Status_t { UNINITED = 0 , INITED = 1 , POWER_ON = 2 , POWER_OFF = 3 }
enum	MeasMode_t { POLLING = 1 , INTERRUPT = 2 }
enum	Result_t { B_FIELD_UNDEF = -1 , B_FIELD_OFF = 0 , B_FIELD_ON = 1 }

Public Member Functions
	HallSpeed ()
	Hall Speed Default Constructor.
	HallSpeed (Hall_GPIO *output, Timer *timer, uint8_t polesNum=1, SpeedUnit_t units=HERTZ, CBackSpd_t cBack=NULL, Hall_GPIO *power=NULL)
	Hall Speed Constructor.
	~HallSpeed ()
	Hall Speed Destructor Disables the sensor:
Error_t	init ()
	Initializes the hardware interfaces.
Error_t	deinit ()
	Deinitializes the hardware interfaces.
Error_t	enable ()
	Enables the sensor.
Error_t	disable ()
	Disables the sensor.
Error_t	updateSpeed ()
	Updates the instance speed value.
double	getSpeed ()
	Gets speed value.
Public Member Functions inherited from HallSwitch
	HallSwitch ()
	Hall Switch Default Constructor.
	HallSwitch (Hall_GPIO *output, CBack_t cBack=NULL, Hall_GPIO *power=NULL)
	Hall Switch Constructor.
	~HallSwitch ()
	Hall Switch Destructor Disables the sensor:
Error_t	init ()
	Initializes the hardware interfaces.
Error_t	deinit ()
	Deinitializes the hardware interfaces.
Error_t	enable ()
	Enables the sensor.
Error_t	disable ()
	Disables the sensor.
Status_t	getStatus ()
	Gets the sensor status.
Error_t	updateBField ()
	Updates instance magnetic field value.
Result_t	getBField ()
	Gets magnetic field.

Protected Member Functions
void	callback ()
	Interrupt mode callback function.
void	calculateSpeed ()
	Calculates the speed in the configured units.

Protected Attributes
Timer *	timer
uint8_t	polesPair
SpeedUnit_t	sUnits
double	speed
Protected Attributes inherited from HallSwitch
Status_t	status
Hall_GPIO *	output
Result_t	bfieldVal
CBack_t	cBack
MeasMode_t	measMode
Hall_GPIO *	power
PowerMode_t	powerMode

Static Protected Attributes
static double const	speedCoeff [3]

Member Typedef Documentation

CBackSpd_t

typedef void(* HallSpeed::CBackSpd_t) (double)

Callback function type for interrupt mode.

Parameters

[in]

speed

The new speed change.

Returns

void

Member Enumeration Documentation

SpeedUnit_t

enum HallSpeed::SpeedUnit_t

Enumerator
HERTZ	cps - Hertz
RADS	rads/s
RPM	RPM

Constructor & Destructor Documentation

HallSpeed() [1/2]

HallSpeed::HallSpeed

(

)

Hall Speed Default Constructor.

• Hardware interfaces pointers set to NULL
• All speed parameters set to zero


  Precondition

  None


HallSpeed() [2/2]

HallSpeed::HallSpeed	(	Hall_GPIO *	output,
		Timer *	timer,
		uint8_t	polesNum = 1,
		SpeedUnit_t	units = HERTZ,
		CBackSpd_t	cBack = NULL,
		Hall_GPIO *	power = NULL
	)

Hall Speed Constructor.

Mandatory arguments:

• Sensor utput GPIO PAL interface pointer
• Timer PAL interface pointer

Optional arguments:

• Magnetic poles pair number. By default 1 pair.
• Speed units. By default Hertzs.
• Interrupt callback. By default NULL. Required to enable interrupt mode.
• Sensor power GPIO pointer (only for switch powered mode platform). By default it is NULL.

Parameters

[in]	*output	Sensor output GPIO interface pointer
[in]	polesMum	Number of magnetic poles pair of the rotating B field
[in]	units	Speed units (RPM, Hertz, cps ...)
[in]	cBack	Callback for interrupt mode. When passed, it enables interrupt mode
[in]	*power	Sensor switch power controlled GPIO interface pointer. Default NULL will set power mode to MAIN

Precondition

None

~HallSpeed()

HallSpeed::~HallSpeed

(

)

Hall Speed Destructor Disables the sensor:

• Stops and disables the timer interface.
• Stops and disable the GPIO interface.
• If "interrupt measuring mode" is enabled, the interrupt is disabled
• If "switch power mode" is configured, the sensor power is disabled


  Precondition

  None

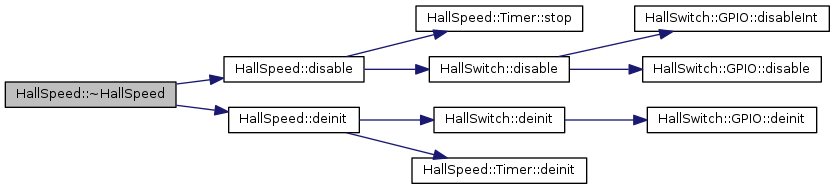

Here is the call graph for this function:

Member Function Documentation

init()

HallSwitch::Error_t HallSpeed::init

(

)

Initializes the hardware interfaces.

Precondition

None

Returns

HallSwitch error code

Return values

OK	if success
INTF_ERROR	if hardware interface error

Here is the call graph for this function:

deinit()

HallSwitch::Error_t HallSpeed::deinit

(

)

Deinitializes the hardware interfaces.

Precondition

Instance has called init()

Returns

HallSwitch error code

Return values

OK	if success
INTF_ERROR	if hardware interface error

Here is the call graph for this function:

enable()

HallSwitch::Error_t HallSpeed::enable

(

)

Enables the sensor.

• If "switch power mode " is configured, the sensor is powered up
• If "interrupt measuring mode" is configured, the interrupt is enabled

Precondition

Instance has called init()

Returns

HallSwitch error code

Return values

OK	if success
INTF_ERROR	if hardware interface error

Here is the call graph for this function:

disable()

HallSwitch::Error_t HallSpeed::disable

(

)

Disables the sensor.

• If the "interrupt measuring mode" is configured, the interrupt is disabled
• If the "switch power mode" is configured, the sensor is powered off

Precondition

Instance has called enable()

Returns

HallSwitch error code

Return values

OK	if success
INTF_ERROR	if hardware interface error

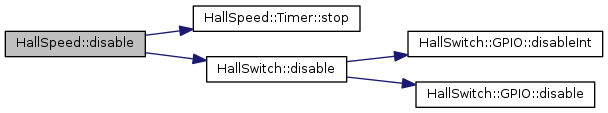

Here is the call graph for this function:

updateSpeed()

HallSwitch::Error_t HallSpeed::updateSpeed

(

)

Updates the instance speed value.

The speed instance member is updated with the read value.

Precondition

Instance has called enable()

Returns

HallSwitch error code

Return values

OK	if success
INTF_ERROR	if hardware interface error

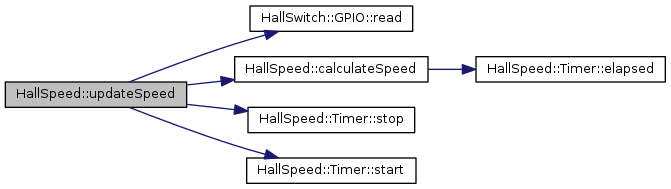

Here is the call graph for this function:

getSpeed()

double HallSpeed::getSpeed

(

)

Gets speed value.

This functions returns the last read value updated in the object member speed variable, either from a explicit updateSpeed() call or due to an interrupt event.

Precondition

If polling mode is used, updateSpeed() has to be called preivously in order to get the actual value.

Returns

Speed value

callback()

void HallSpeed::callback ( )

protectedvirtual

Interrupt mode callback function.

The class updates on its own speed member to the when the interrupt occurs Passed as interrupt callback handler.

Returns

void

Reimplemented from HallSwitch.

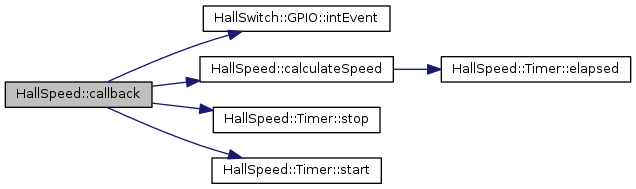

Here is the call graph for this function:

calculateSpeed()

void HallSpeed::calculateSpeed ( )

protected

Calculates the speed in the configured units.

Called by updateSpeed() or in the callback() interrupt to update the object speed member variable.

Returns

void

Here is the call graph for this function:

Member Data Documentation

timer

Timer* HallSpeed::timer

protected

Timer interface pointer

polesPair

uint8_t HallSpeed::polesPair

protected

Rotor poles pair number

sUnits

SpeedUnit_t HallSpeed::sUnits

protected

Speed units

speed

double HallSpeed::speed

protected

Rotating speed

speedCoeff

double const HallSpeed::speedCoeff

staticprotected

Initial value:

=
{
    1000.0,
    6283.2,
    60000.0
}

---

The documentation for this class was generated from the following files:

• hall-speed.hpp
• hall-speed.cpp
