Overview

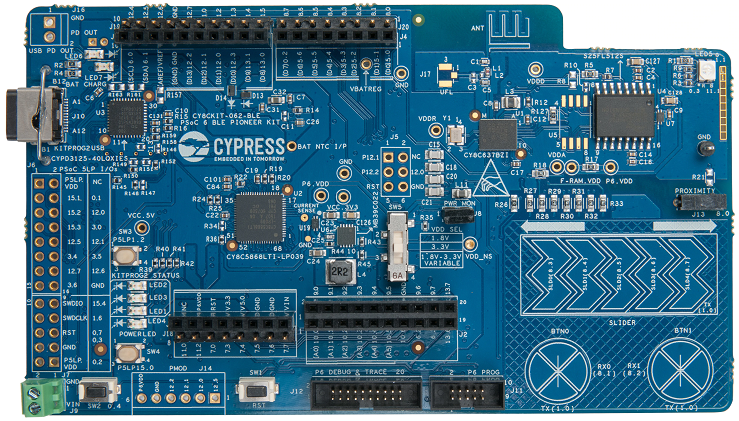

The PSoC™ 6 BLE Pioneer Kit is a low-cost hardware platform that enables design and debug of the PSoC™ 63 Line (CY8C6347BZI-BLD53).

To use code from the BSP, simply include a reference to cybsp.h.

Features

Kit Features:

BLE v5.0
Serial memory interface
PDM-PCM digital microphone interface
Industry-leading CAPSENSE

Kit Contents:

CY8CKIT-062-BLE evaluation board
E-Ink display shield with an ultra-low-power 2.7" E-ink display, thermistor, 6-axis motion sensor, and digital microphone * USB cable @section autotoc_md5 BSP Configuration The BSP has a few hooks that allow its behavior to be configured. Some of these items are enabled by default while others must be explicitly enabled. Items enabled by default are specified in the CY8CKIT-062-BLE.mk file. The items that are enabled can be changed by creating a custom BSP or by editing the application makefile. Components: * Device specific category reference (e.g.: CAT1) - This component, enabled by default, pulls in any device specific code for this board. Defines: * CYBSP_WIFI_CAPABLE - This define, disabled by default, causes the BSP to initialize the interface to an onboard wireless chip if it has one. * CY_USING_HAL - This define, enabled by default, specifies that the HAL is intended to be used by the application. This will cause the BSP to include the applicable header file and to initialize the system level drivers. * CYBSP_CUSTOM_SYSCLK_PM_CALLBACK - This define, disabled by default, causes the BSP to skip registering its default SysClk Power Management callback, if any, and instead to invoke the application-defined function <tt>cybsp_register_custom_sysclk_pm_callback</tt> to register an application-specific callback. @subsection autotoc_md6 Clock Configuration <table class="markdownTable"> <tr class="markdownTableHead"> <th class="markdownTableHeadNone"> Clock

Source

Output Frequency

FLL

IMO

100.0 MHz

PLL

IMO

48.0 MHz

CLK_HF0

CLK_PATH0

100 MHz

Power Configuration

System Active Power Mode: LP
System Idle Power Mode: Deep Sleep
VDDA Voltage: 3300 mV
VDDD Voltage: 3300 mV

See the BSP Setttings for additional board specific configuration settings.

API Reference Manual

The CY8CKIT-062-BLE Board Support Package provides a set of APIs to configure, initialize and use the board resources.
