NFC data exchange format (NDEF) library

‍C library to encode and decode the NDEF messages

The NFC data exchange format (NDEF) specification by NFC Forum defines a common data format to exchange information between NFC Forum devices. An NDEF message is composed of one or more NDEF records. Each NDEF record contains the record type information and a payload.

This C library provides support to build and parse the NDEF messages, with support for common NDEF record type definitions. This library is extensible for addition of new record type definitions.

Features

• Build and parse the NDEF messages
• Build and parse the NDEF records
• Supported records:
  • URI record
  • Bluetooth connection handover records (For static connection handover)
    • Bluetooth record (application/vnd.bluetooth.ep.oob)
    • Bluetooth LE record (application/vnd.bluetooth.le.oob)
    • Handover select record
    • Alternative carrier record
    • Error record
  • MIME type record
  • External type record

Features not supported

• Record chunks

Usage

1. Include the following headers

   #include "infineon/ifx-error.h"
   #include "infineon/ifx-record-uri.h"
   #include "infineon/ifx-ndef-message.h"
   #include "infineon/ifx-ndef-record.h"
   #include "infineon/ifx-utils.h"

1. Encode the URI record

   ifx_record_handle_t handles[2];
   uint8_t data_1[] = "infineon.com";
   uint8_t data_2[] = "github.com/infineon";

   ifx_blob_t uri_data_1;
   uri_data_1.buffer = data_1;
   uri_data_1.length = sizeof(data_1);

   ifx_blob_t uri_data_2;
   uri_data_2.buffer = data_2;
   uri_data_2.length = sizeof(data_2);

   // Create new URI record
   ifx_record_uri_new(&handles[0]);
   ifx_record_uri_new(&handles[1]);

   // Set identifier code of the URI record
   ifx_record_uri_set_identifier_code(&handles[0], IFX_URI_HTTPS_WWW);
   ifx_record_uri_set_identifier_code(&handles[1], IFX_URI_HTTPS);

   // Set URI field of the URI record
   ifx_record_uri_set_uri(&handles[0], &uri_data_1);
   ifx_record_uri_set_uri(&handles[1], &uri_data_2);

1. Encode the NDEF message

   ifx_blob_t ndef_message;
   uint32_t number_of_records = 0x02;
   // Encode the record into the NDEF message
   ifx_status_t status = ifx_ndef_message_encode(&handles[0], number_of_records, &ndef_message);

1. Decode the NDEF message

   uint32_t no_of_records = 0x00;

   // Decode the NDEF message into array of NDEF records
   status = ifx_ndef_message_decode(&ndef_message, &no_of_records, (ifx_record_handle_t *)&handles);

1. Decode the URI record

   uint8_t identifier_code = 0;
   ifx_blob_t uri, uri_identifier, identifier;

   // Get the URI record identifier code
   status = ifx_record_uri_get_identifier_code(&handles[0], &identifier_code);

   // Get the URI record URI field
   status = ifx_record_uri_get_uri(&handles[0], &uri);

   // Get the URI record identifier as string
   status = ifx_record_uri_get_identifier(&handles[0], &identifier);

   // Get the URI record combining URI field with identifier
   status = ifx_record_uri_get_uri_with_identifier(&handles[0], &uri_identifier);

1. Release the memory allocated by the library

   // free-up the internally allocated memory.
   status = ifx_ndef_record_release_resource();

Architecture

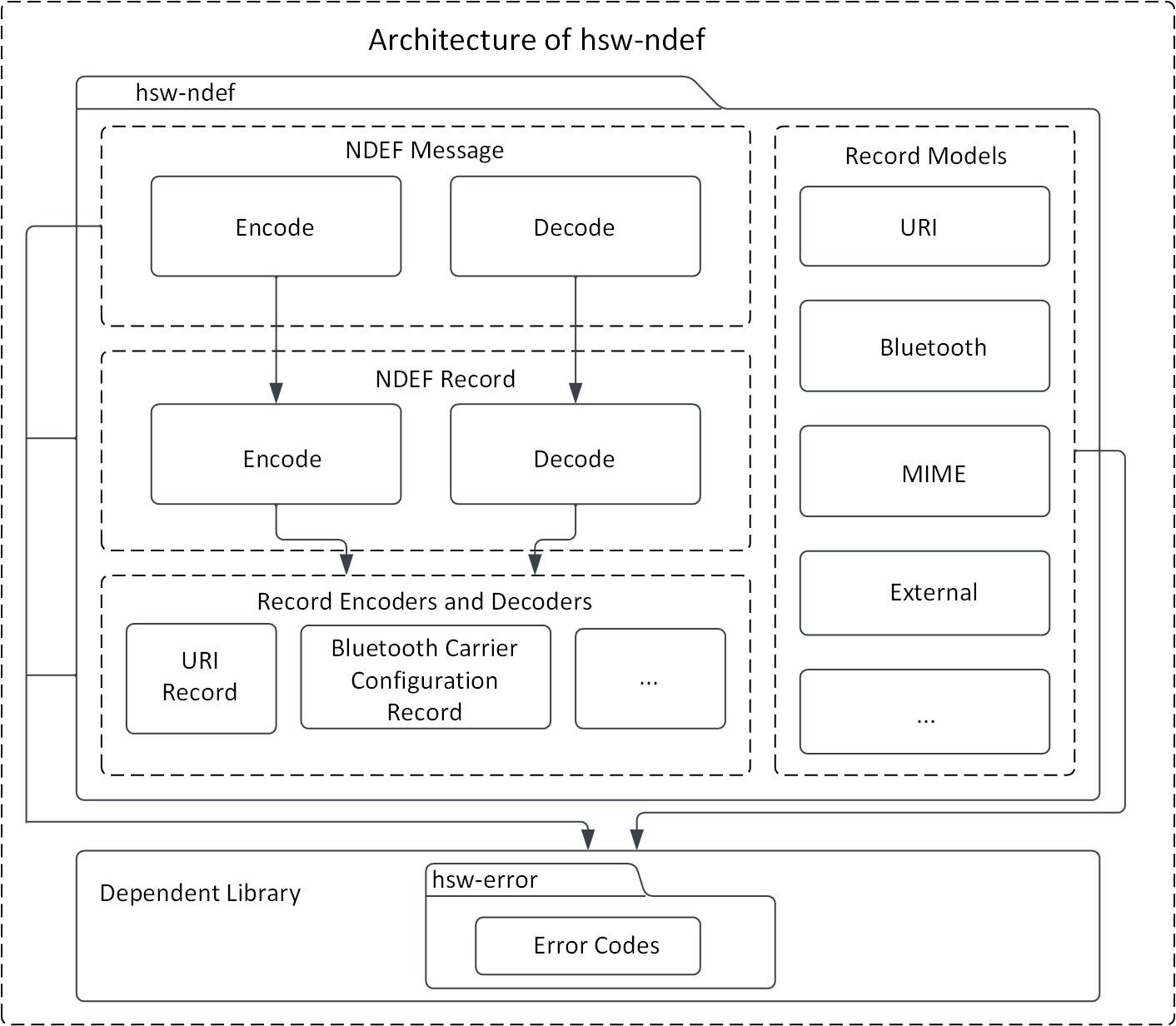

This image shows the software architecture of the library.

Components

• NDEF message This component provides methods to encode array of records into an NDEF message and similarly decode an NDEF message into array of records.
• Record models This component contains the record models that are in-built supported by the library. These record models provide the structure for the record, which can be used to build the record. Example: ifx_record_uri_set_uri(&record, "https://www.infineon.com")
• NDEF record This component contains the methods to encode and decode the NDEF record headers.
• Record payload encoders and decoders This component contains the payload encoders and decoders, which can be used to encode and decode the payload details into a byte array.

Interaction

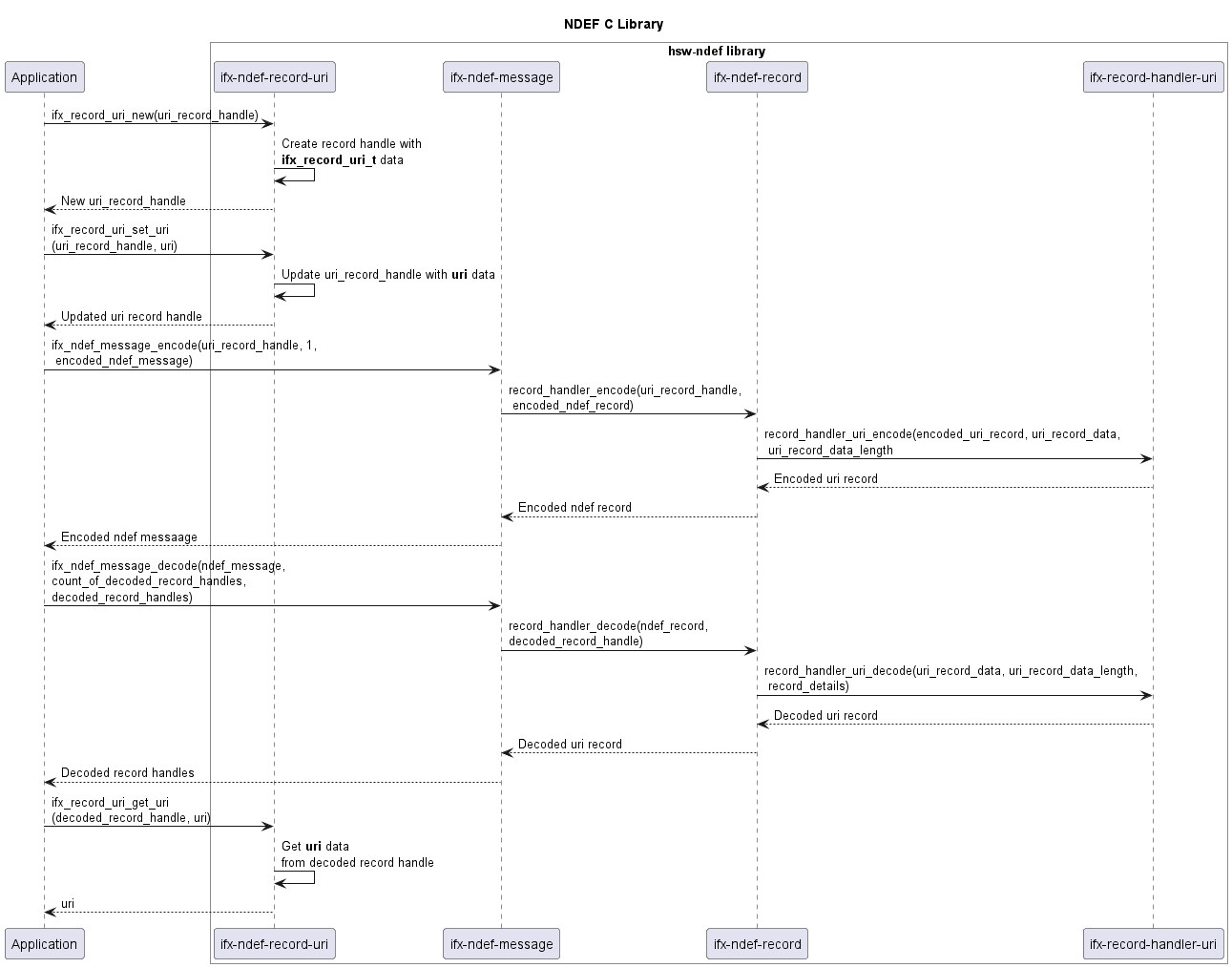

Below UML diagram describes the interaction between the components.

Directory structure

The code is structured according to the Pitchfork Layout.

hsw-ndef
|-- .cmake/                 # Includes sources for dependency management
|-- LICENSES/               # Includes list of licenses used for the library
|-- data/                   # Includes Doxygen, cppcheck configuration files
|-- docs/                   # Includes documentation source files, images, and the generated API reference
|-- include/                # Public Headers(.h) of the library
|-- src/                    # Sources(.c) and Private headers(.h) of the library
|-- .clang-format           # clang-format configuration file
|-- .gitignore              # Library specific gitignore file
|-- CMakeLists.txt          # CMake build configurations for the library
`-- README.md               # Overview of the hsw-ndef library

Dependencies

• hsw-error This dependent library is used for creating and parsing an error information.
• hsw-utils This dependent library provides the utility methods such as for byte conversions, string conversions, bit operations, and encoders/decoders for 2-byte TLV data.

References

• NFC Data Exchange Format (NDEF), Technical Specification, NFC Forum™, NDEF 1.0
• NFC Record Type Definition (RTD), Technical Specification, NFC Forum™, RTD 1.0
• URI Record Type Definition (RTD), Technical Specification, NFC Forum™, RTD-URI 1.0
• Connection Handover, Technical Specification, NFC Forum™, CH 1.4
• Bluetooth® Secure Simple Pairing Using NFC, Application Document, NFC Forum™, BTSSP 1.3
